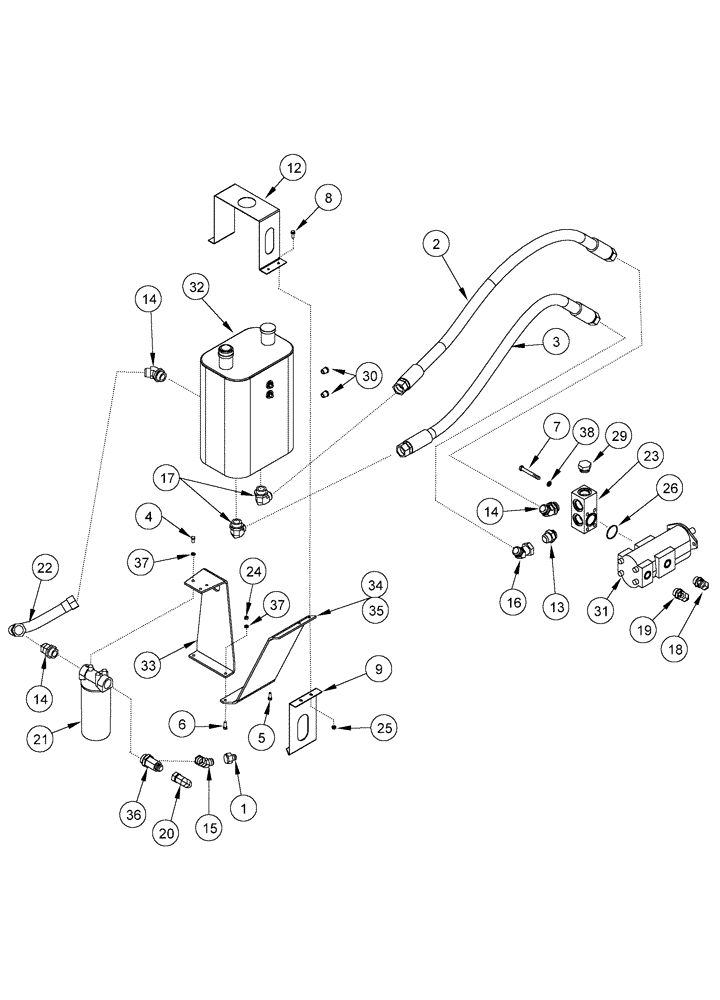

Запчасти Case IH 955 (8-178) - MULTI-CHANNEL HYDRAULIC RESERVOIR, AFS PLANTER, 24 ROW NARROW & 12/23 PLANTER (08) - HYDRAULICS

1

218-1705

REDUCER,37º, 1 5/16"-12, Fem x 1 1/16"-12 Male

ADAPTER - reducing, 1-5/16-12 female str thread x 1-1/16-12 inch flare

1шт.

2

318256A1

HOSE ASSY.

HOSE - 1675 mm (66 inch)

1шт.

3

318256A1

HOSE ASSY.

HOSE - 1675 mm (66 inch)

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

7

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

9

1979829C1

SUPPORT

- hydraulic reservoir

2шт.

12

1347146C1

CLAMP

- reservoir

1шт.

13

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss

1шт.

14

218-5141

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 45 degree, 1-5/8-12 inch flare x adj O-ring boss

3шт.

15

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel

1шт.

16

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

- 45 degree, 1-5/8-12 inch flare x swivel

1шт.

17

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, 1-5/8-12 inch flare x adj O-ring boss

2шт.

18

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss

1шт.

19

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1 5/16"-12 adj O-ring boss

1шт.

20

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel

1шт.

21

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY -

1шт.

22

294178A1

HYDRAULIC HOSE

HOSE - suction, 655 mm (26 inch)

1шт.

23

303848A1

MANIFOLD

-

1шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

26

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

29

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss

1шт.

30

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

31

277807A1

PUMP

- tandem

1шт.

31a

310572A1

SEAL KIT

KIT - pump seal, not shown

1шт.

32

123413A3

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, serviceable parts on page 8-175

1шт.

33

294129A1

SUPPORT

- filter

1шт.

34

294127A1

SUPPORT

- reservoir left hand, left hand

1шт.

35

294128A1

SUPPORT

- reservoir right hand, right hand

1шт.

36

218-5590

TEE,37 Degree, 1 1/16"-12, 1 5/8"-12 O-Ring Run, 1 5/16"-12

-

1шт.

37

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
