(8-184) - MULTI-VARIABLE RATE VALVE, PRIMARY FAN DRIVE, AFS PLANTER 12 ROW & 16 ROW NARROW & 12/23 SRC

Запчасти Case IH 955 (8-184) - MULTI-VARIABLE RATE VALVE, PRIMARY FAN DRIVE, AFS PLANTER 12 ROW & 16 ROW NARROW & 12/23 SRC (08) - HYDRAULICS

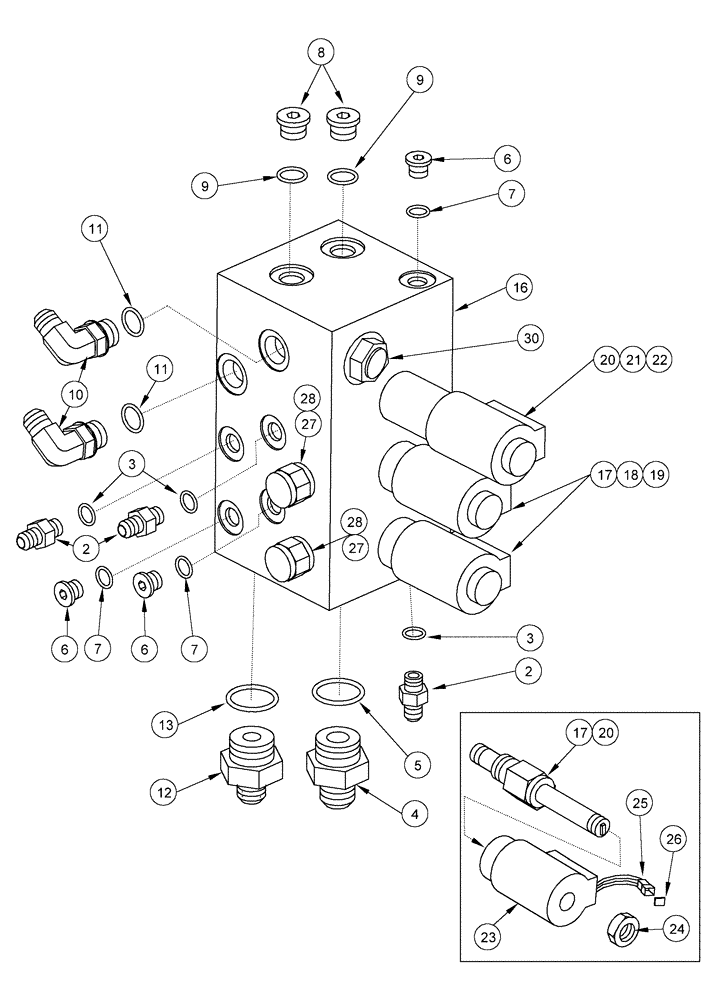

Схема запчастей Case IH 955 - (8-184) - MULTI-VARIABLE RATE VALVE, PRIMARY FAN DRIVE, AFS PLANTER 12 ROW & 16 ROW NARROW & 12/23 SRC (08) - HYDRAULICS
22
20
30
6
7
25
13
5
21
3
11
18
26
11
27
17
24
28
19
27
7
8
17
2
23
12
9
6
20
3
2
6
10
7
16
28
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

304668A3

VALVE

ASSEMBLY - multi-variable

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

3шт.

4

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

6

9625178

PLUG,9/16" - 18 ORB

3шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

12

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

293321A4

VALVE

ASSEMBLY - multi-variable

1шт.

17

254969A2

HYDRAULIC VALVE

VALVE - flow control cartridge, size 10

2шт.

18

1285892C1

FILTER SCREEN

SCREEN - filter

2шт.

19

304494A1

SEAL KIT

- seal

2шт.

20

308133A2

VALVE

- flow control cartridge

1шт.

21

324489A1

SCREEN

- filter

1шт.

22

304499A1

SEAL KIT

- seal

1шт.

23

188105A1

SOLENOID

- without diode, 12 volt, DC

3шт.

24

188106A1

NUT

- special

3шт.

25

225315C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - wedge

3шт.

26

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR - w2p

3шт.

27

278200A1

VALVE

- differential pressure sensing

2шт.

28

304391A1

SEAL KIT

KIT - seal

2шт.

29

280025A1

KIT

- sense valve check

3шт.

30

304371A1

HYDRAULIC VALVE

VALVE - coast check, component parts not serviced separately

1шт.

31

149942C1

SEAL KIT

KIT - seal replacement

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
