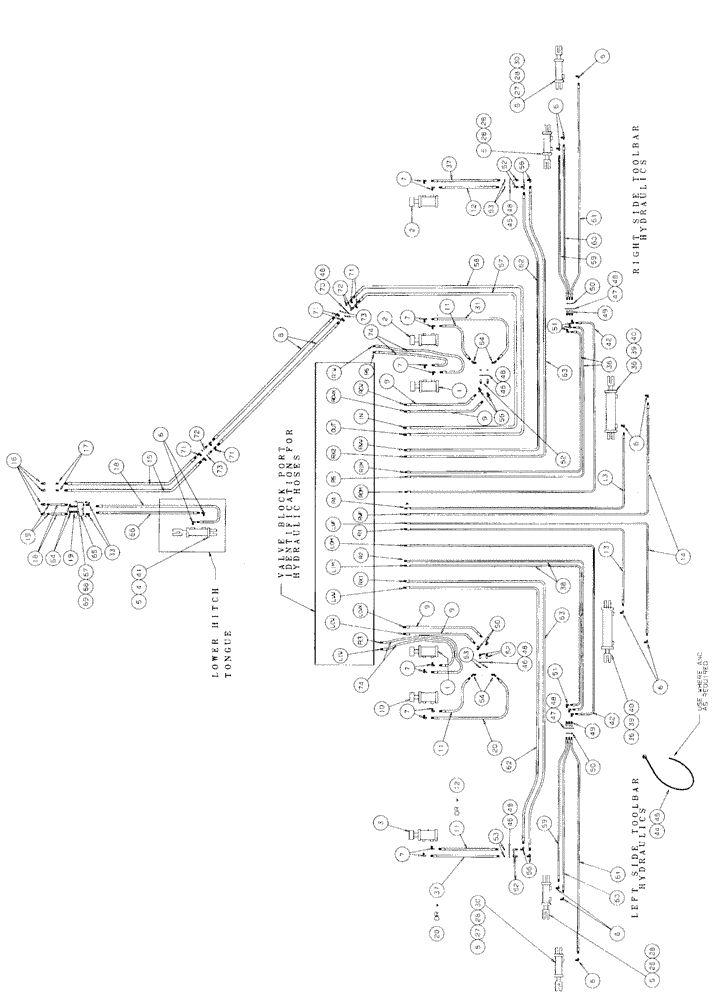

Запчасти Case IH 955 (8-186) - COMPLETE HYDRAULIC LAYOUT, AFS PLANTER, 12/23 SRC (08) - HYDRAULICS

1

233760A2

CYLINDER

ASSEMBLY - 102 (4) ID x 184 mm (7-1/4 inch) stroke, see page 8-109

2шт.

2

233762A1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 184 mm (7-1/4 inch) stroke, see page 8-113

2шт.

3

233761A2

CYLINDER

ASSEMBLY - 108 (4-1/4) ID x 184 mm (7-1/4 inch) stroke, see page 8-111

1шт.

4

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

10шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

17шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

20шт.

8

250959A2

HYDRAULIC HOSE,15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

2шт.

9

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

10

247402A2

CYLINDER

ASSEMBLY - 121 (4-3/4) ID x 184 mm (7-1/4 inch) stroke

1шт.

11

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long

3шт.

12

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

13

1969386C1

HOSE

- 584 mm (23 inch) long

2шт.

14

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

0.25" ID x 33.00"

2шт.

15

250960A2

HYDRAULIC HOSE,15.90 mm ID x 2540.00 mm, SAE 100R2 or SAE 100R16

15.90 mm ID x 2540.00 mm, SAE 100R2 or SAE 100R16

2шт.

16

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

4шт.

17

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss

2шт.

18

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long

3шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

8шт.

20

1344615C1

HYDRAULIC HOSE

HOSE - 535 mm (21 inch) long

2шт.

21

240737A2

VALVE

ASSEMBLY - control, see page 8-155B

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

23

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

298671A2

COVER ASSY

COVER - control valve

1шт.

25

318832A1

ORNAMENTAL STRIP

TRIM - valve cover

1шт.

26

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, see page 8-95

2шт.

27

120620A1

PIN

- cylinder pivot

2шт.

28

810751C1

PIN

- headed, 1 x 3-1/2 inch

6шт.

30

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke

2шт.

31

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

1шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

4шт.

33

297975A1

ELBOW

- 90 degree, special, with orifice

1шт.

34

121980A1

HANDLE

KNOB - knurled

4шт.

35

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

36

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke

2шт.

37

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long

1шт.

38

1261441C1

HYDRAULIC HOSE

HOSE - 5842 mm (230 inch) long

4шт.

39

145282C1

CLEVIS PIN

PIN - headed, 1-1/4 x 3-1/2 inch

4шт.

40

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

41

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke

1шт.

42

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE - 5840 mm (230 inch) long

2шт.

44

112620A1

CABLE TIE

TIE - cable, 867 mm (34 inch) long

4шт.
