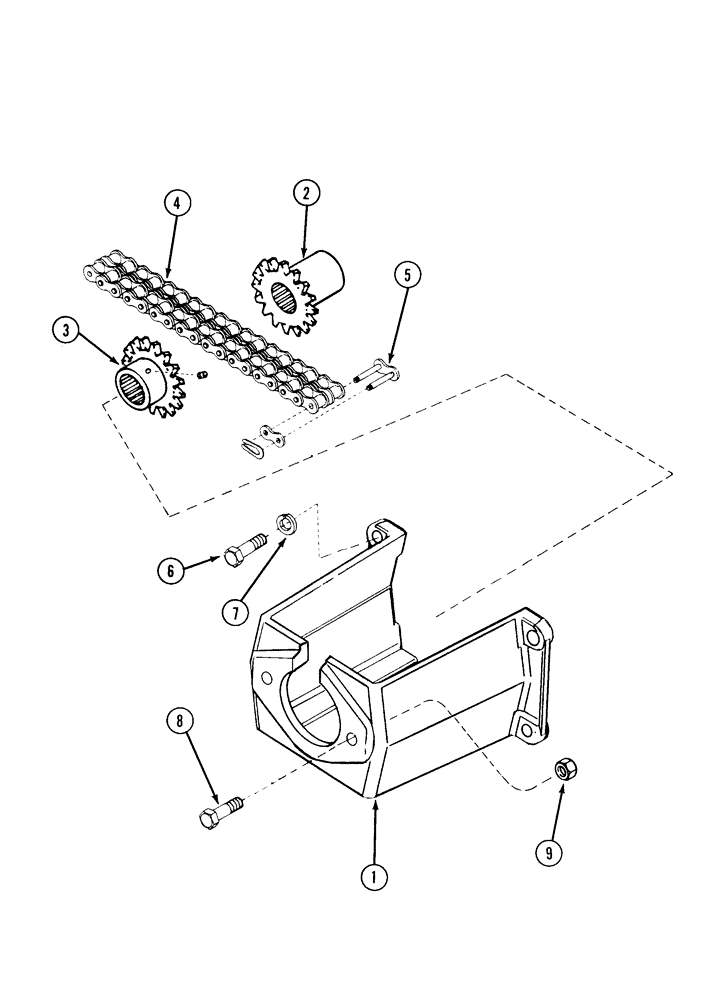

Запчасти Case IH 955 (8-190) - PUMP MOUNTING, AFS PLANTER, 12/23 SRC FOR USE WITH MAGNUM AND MX MAGNUM TRACTORS (08) - HYDRAULICS

1

297201A1

HOUSING

- pump support, for use with Magnum tractors

1шт.

This casting, when used on the MX Magnum or Magnum for a 12/23 or 24 row ground drive planter, will require the use of (2) 363665A1 spacers between the casting and PTO to provide clearance between the PTO shaft and the tripple pump. Longer bolts required, 10 mm, P/N 814-10050.

1шт.

1

335711A1

HOUSING

- pump support, for use with MX Magnum tractors

1шт.

This housing and hardware is also used when mechanical ground drive planter is used with MX Magnum tractors.

1шт.

2

299145A1

SPROCKET ASSY.

SPROCKET - 20 tooth

1шт.

3

299151A1

SPROCKET ASSY.

SPROCKET - 15 tooth

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - pump drive, use 17 links of 28363R1 plus one connector link 241-1326

1шт.

4

28363R1

CHAIN (AG)

CHAIN - bulk, No. 60, 10 ft (3048 mm) roll

1шт.

5

241-1326

LINK,12.7mm Pitch

- connecting, single pitch, No. 60-2, 3/4 inch pitch

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, for use with Magnum tractors

4шт.

6

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

- hex, 16 - 2.0 x 100 mm, class 10.9, For use with MX Magnum tractors

4шт.

This housing and hardware is also used when mechanical ground drive planter is used with MX Magnum tractors.

1шт.

7

892-11010

LOCK WASHER,M10

For use with Magnum tractors only M10

4шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
