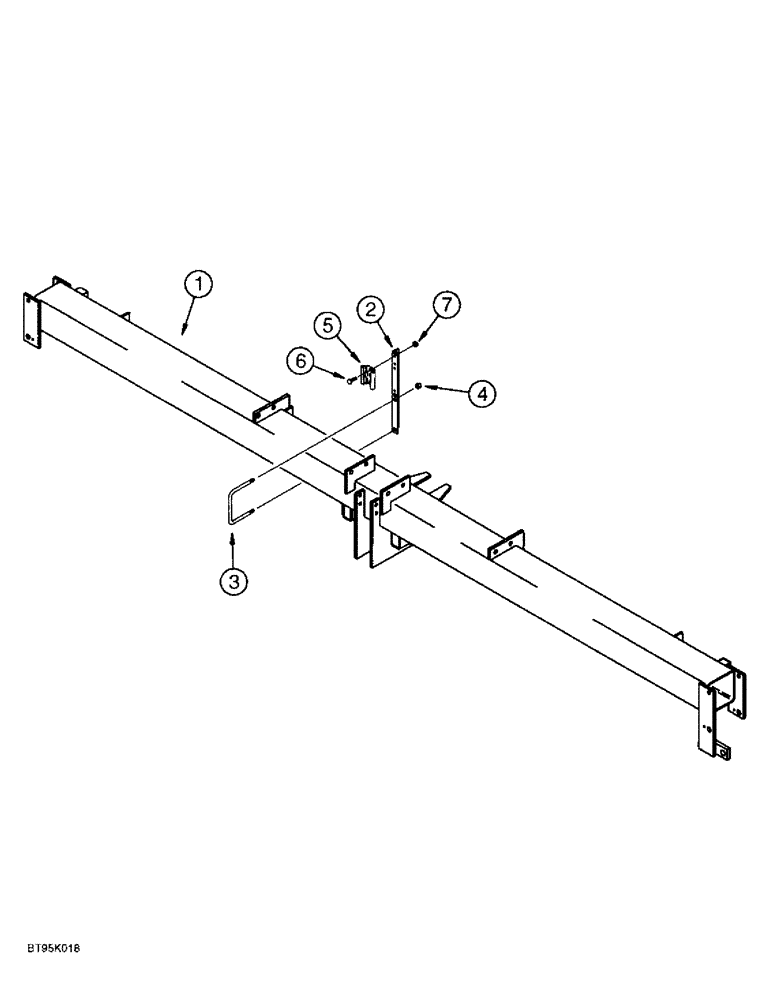

Запчасти Case IH 955 (9A-002) - MAIN FRAME, 4, 6 AND 8 ROW NARROW - RIGID, 4 AND 6 ROW WIDE RIGID (09) - CHASSIS/ATTACHMENTS

1

142280A1

FRAME ASSY

FRAME - main, 4 row wide and 4 row narrow

1шт.

1

142283A1

FRAME ASSY

FRAME - main, 6 row wide

1шт.

1

142281A1

FRAME ASSY

FRAME - main, 6 row narrow

1шт.

1a

141807A1

FRAME ASSY

FRAME - main, 8 row narrow, not shown

1шт.

2

58316C2

SUPPORT

- lamp and SMV emblem, lamp (See Note)

1шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

A59457

BRACKET

- mounting

1шт.

6

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
