(9A-012) - TONGUE AND HITCH, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD

Запчасти Case IH 955 (9A-012) - TONGUE AND HITCH, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

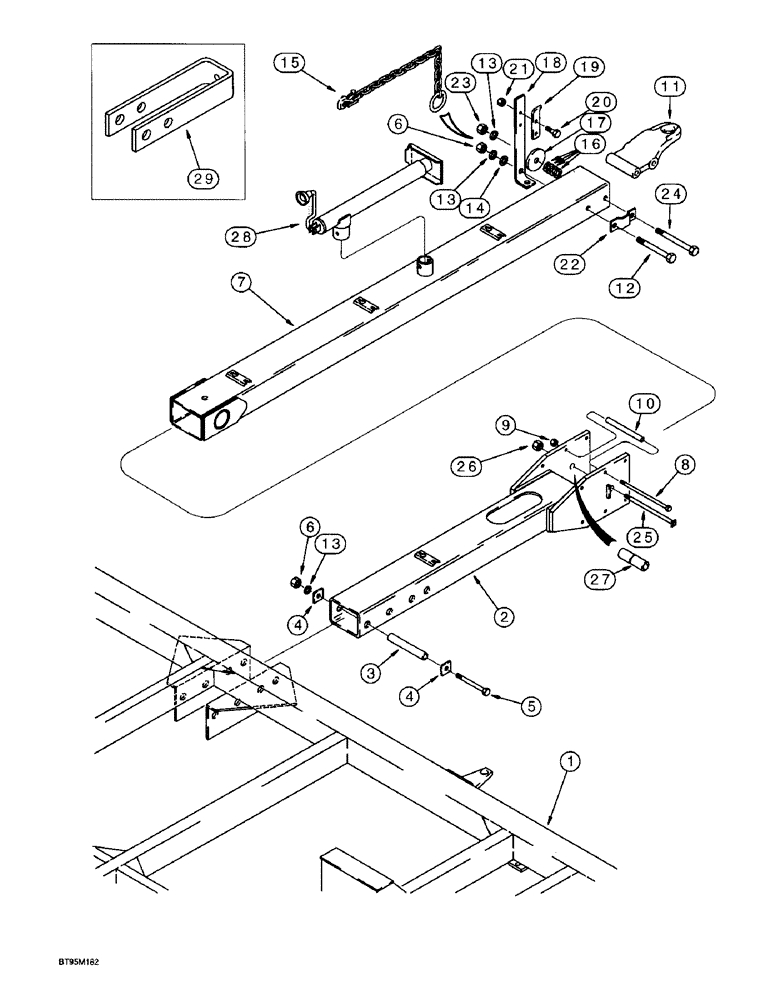

Схема запчастей Case IH 955 - (9A-012) - TONGUE AND HITCH, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS
6
13
20
24
8
2
3
11
5
22
14
19
25
12
26
7
13
18
9
10
17
6
4
27
28
21
16
13
4
15
29
23
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FRAME - fertilizer cart (shown), see pages 9F-37 and 9F-43 for correct frame when dry or liquid fertilizer attachment is used - see pages 9A-9 and 9A-11 for correct main frame used on planters with or without fertilizer attachments

1шт.

2

137978A3

HITCH ASSY

RECEIVER - hitch

1шт.

3

117699A1

SPACER

- tube

3шт.

4

1277824C1

WASHER

WASHER - square, with round hole

6шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch

3шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

5шт.

7

138865A3

HITCH ASSY

HITCH ASSEMBLY - planter, includes decals

1шт.

REF#7, THE HARDWARE THAT ATTACHES TO THE 3 BRACKETS, ON THIS ASSEMBLY FOR THE HYDRAULIC HOSES,CAN BE FOUND ON PAGE 8-78, ITEMS 28 THRU 31. jfn 10/27/98

1шт.

7a

192848A2

DECAL

- Case IH, 70 x 255 mm, not shown, see page 9F-121

2шт.

7b

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual, not shown, see page 9F-115

1шт.

7c

220447A1

WARNING DECAL

DECAL - Warning, avoid injury, not shown, see page 9F-115

1шт.

8

413-10168

BOLT,Hex, 5/8" - 11 x 10-1/2", Gr 5

- hex, 5/8 NC x 10-1/2 inch

4шт.

9

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

10

136393A2

SPACER

- hitch

4шт.

11

1277987C2

TOW BAR

TONGUE - hitch

1шт.

12

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

1шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

14

495-11081

WASHER,3/4", SAE

1шт.

15

63506C3

CHAIN (AG)

CHAIN - hitch, 3/8 link x 59-7/64 inch

1шт.

16

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch hardened

4шт.

17

1969255C1

WASHER

- flat, 13/16 x 3-1/2 x 3/8 inch

1шт.

18

108232A1

SUPPORT

BAR - hydraulic hose standoff

1шт.

19

58644C1

HOLDER

- hydraulic hose

2шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

21

231-4148

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

22

137098C1

SUPPORT

BRACKET - pump mounting

1шт.

23

329-1012

NUT,3/4"-10, G8

1шт.

24

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

- hex, 3/4 x 10 inch, grade 8

1шт.

25

136283A2

PIN ASSY.

PIN - pivot, hitch

1шт.

26

231-41124

LOCK NUT,1 1/2"-6, GB

NUT - hex, self-locking, 1-1/2 inch NC

1шт.

27

136301A2

BUSHING

- hitch pivot

1шт.

28

1333730C1

JACK

- hitch

1шт.

29

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.
