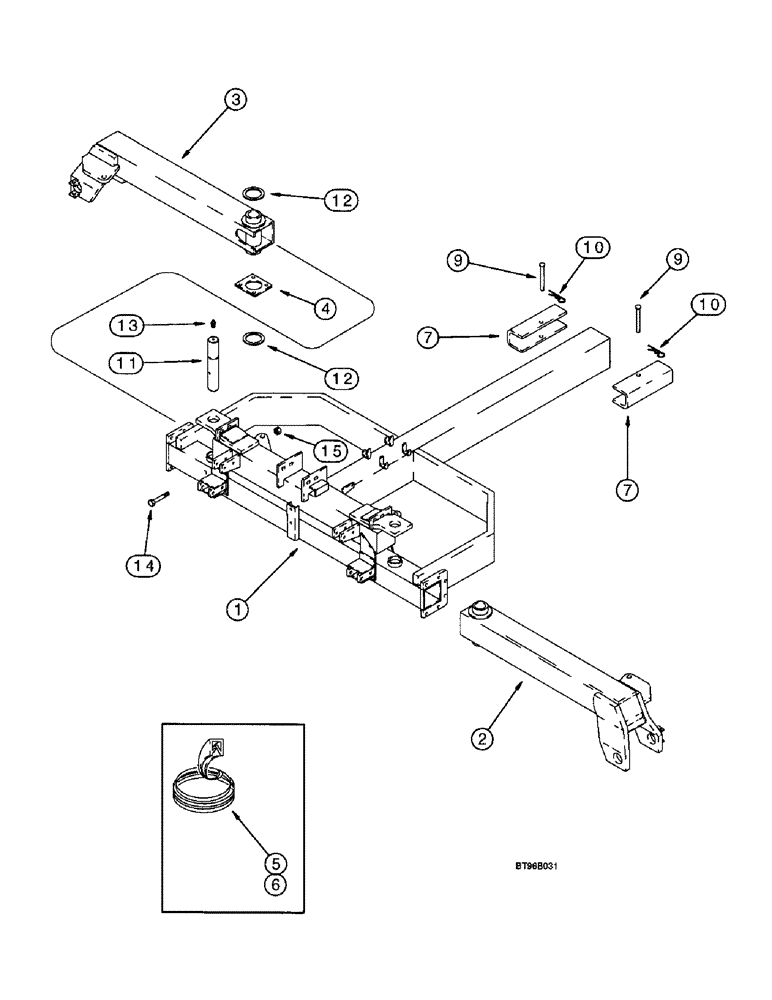

Запчасти Case IH 955 (9A-022) - CENTER MAIN FRAME, 24 ROW NARROW - FRONT FOLD, PLANTERS BUILT UP TO AUG 97 PRIOR TO PIN DCB0001114 (09) - CHASSIS/ATTACHMENTS

1

123699A1

FRAME

- main, center

1шт.

2

123694A1

HINGE

- main frame, right-hand

1шт.

3

123695A1

HINGE

- main frame, left-hand

1шт.

4

118858A1

BEARING

- plastic

2шт.

5

118863A1

STRIP

TRIM - edge, 1/2 inch thick

4шт.

6

118862A1

STRIP

TRIM - edge, 3/8 inch thick

12шт.

7

119844A2

STOP

- wheel cylinder, includes decal

4шт.

8

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury, not shown (See page 9F-115, item 4)

1шт.

9

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch, grade 2

4шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

4шт.

11

127845A1

PIN

- 3 x 20-3/4 inch, vertical, wing hinge

2шт.

12

127849A1

WASHER

- thrust

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

14

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

15

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.
