(9A-058[A]) - 15 INCH WHEELS - RIGID NARROW ROW PLANTERS

Запчасти Case IH 955 (9A-058[A]) - 15 INCH WHEELS - RIGID NARROW ROW PLANTERS (09) - CHASSIS/ATTACHMENTS

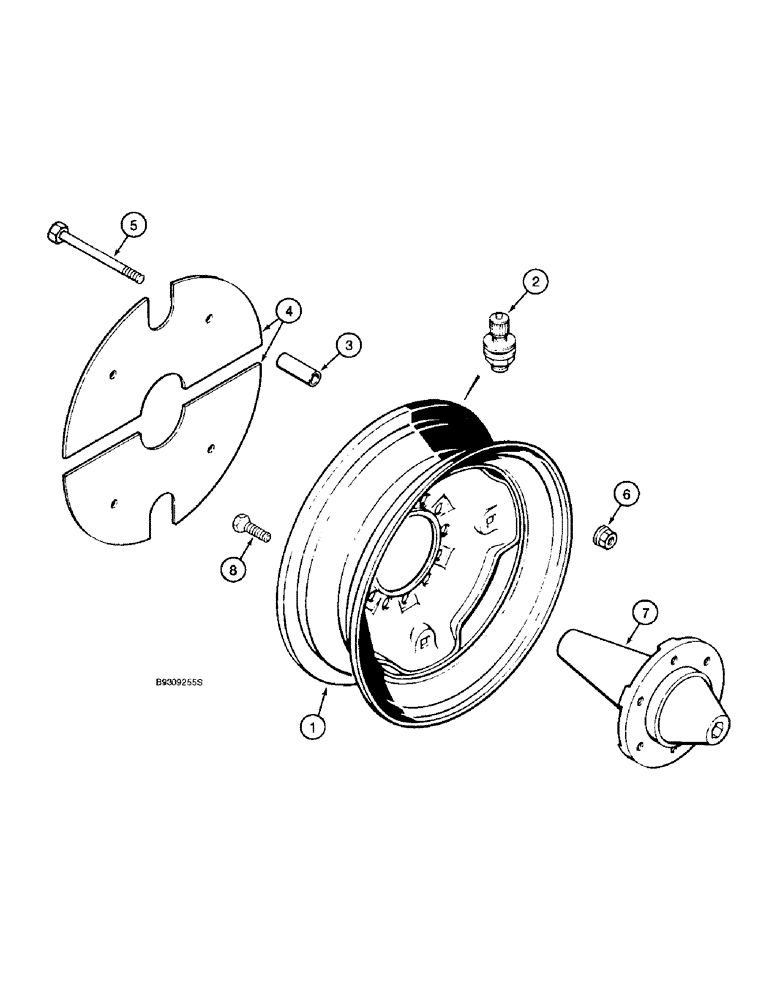

Схема запчастей Case IH 955 - (9A-058[A]) - 15 INCH WHEELS - RIGID NARROW ROW PLANTERS (09) - CHASSIS/ATTACHMENTS
2
4
5
1
7
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T53527

WHEEL

- 381 (15) x 127 mm (5 inch)

1шт.

2

810769C1

VALVE

- inflation

1шт.

3

1264481C1

SPACER,1/2" Pipe x 2.441"

- 62 mm (2-7/16 inch) long, cover

8шт.

4

1264480C1

COVER

- 15 inch wheel

4шт.

5

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

4шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

90343C1

HUB

- wheel

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.
