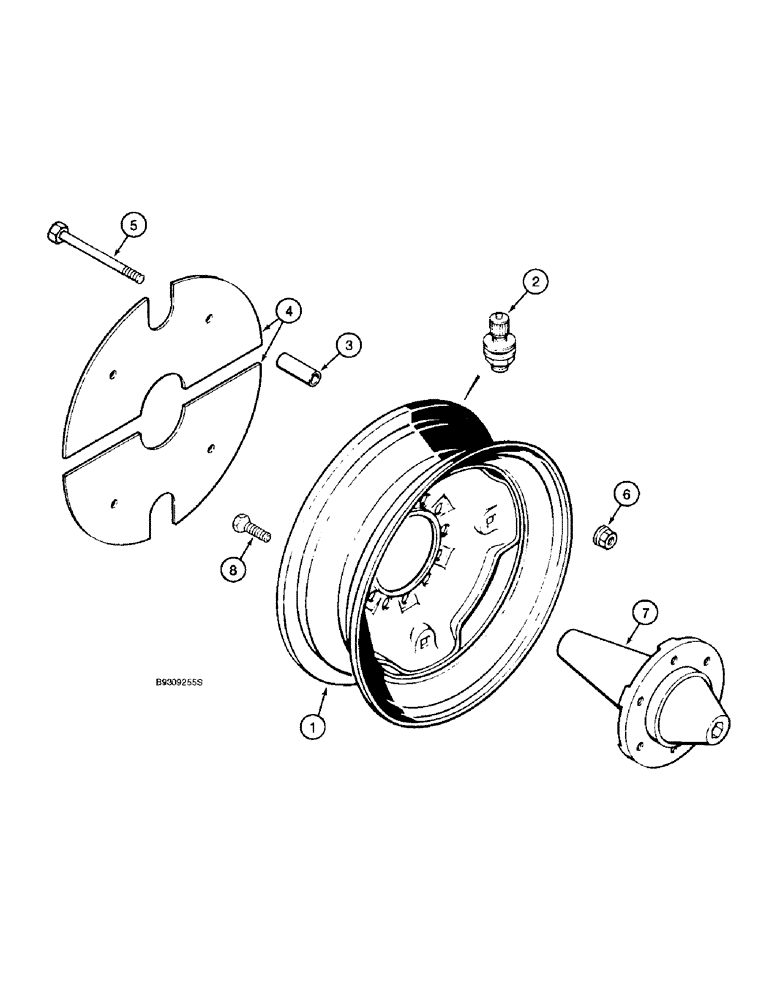

Запчасти Case IH 955 (9A-058) - DRIVE/CARRYING WHEELS, ALL RIGID PLANTERS, 14 INCH WHEELS - RIGID WIDE ROW PLANTERS (09) - CHASSIS/ATTACHMENTS

1

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch)

1шт.

2

810768C1

VALVE

- inflation

1шт.

3

1333828C2

SPACER

- 79 mm (3-1/8 inch) long, cover

4шт.

3

1333829C1

SPACER

- 95 mm (3-3/4 inch) long, cover

4шт.

4

1333824C1

COVER

- 14 inch wheel

4шт.

5

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

4шт.

6

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

7

90343C1

HUB

- wheel

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.
