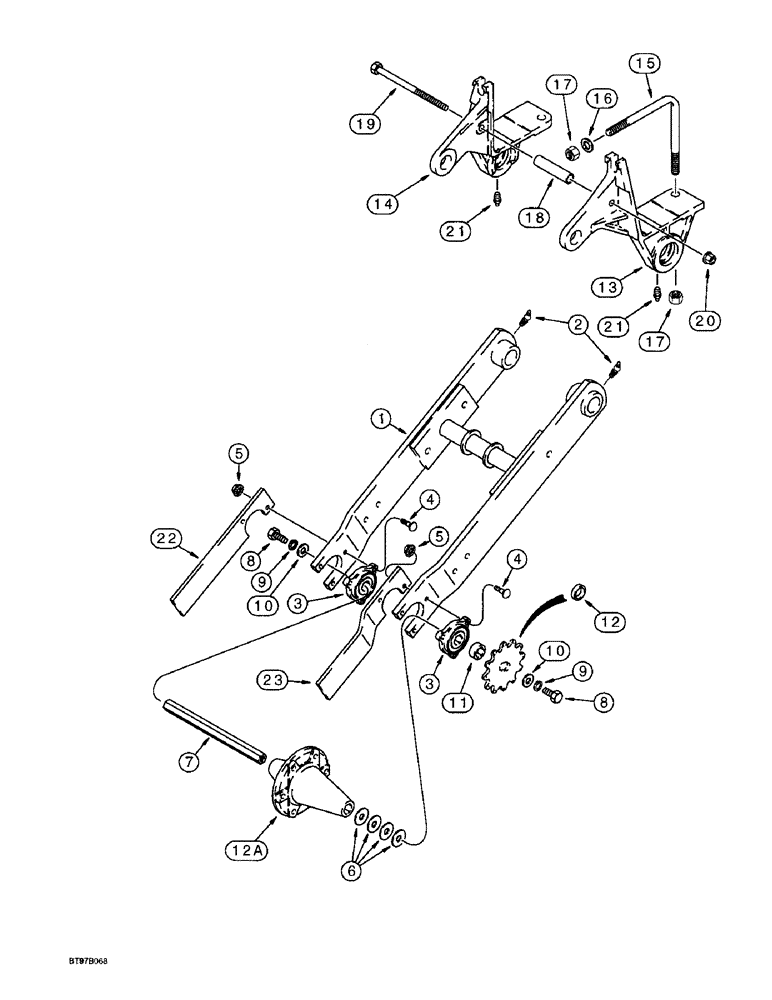

Запчасти Case IH 955 (9A-061A) - DRIVE/CARRYING WHEEL MOUNTING, RIGID PLANTERS, WITH ONE-PIECE WELDED WHEEL FRAME (09) - CHASSIS/ATTACHMENTS

1

191012A2

FRAME

- mounting, drive/carrying wheel

1шт.

See Figure 9A-61 for three-piece bolted wheel mounting frame.

1шт.

2

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

3

233254A1

BEARING ASSY,25.55mm ID

BEARING - ball, axle bar

2шт.

4

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

6шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

6

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

4шт.

7

90341C3

AXLE

BAR - axle wheel, 333 mm (13-1/8 inch) long

1шт.

8

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - special

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

11

90376C2

SPACER

- sprocket

1шт.

12

149356C2

SPACER

- axle (Used in place of sprocket when used for carrying wheel application)

1шт.

12a

90343C1

HUB

- wheel

1шт.

13

95833C3

BRACKET

- wheel and cylinder mounting, right-hand

1шт.

14

95832C3

BRACKET

- wheel and cylinder mounting. left-hand

1шт.

15

141025C3

BOLT

L-BOLT - 3/4 inch NC

2шт.

16

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

17

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

18

95911C2

TUBE

SPACER - wheel bracket tie

1шт.

19

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

1шт.

20

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

21

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

22

236136A1

GUARD

- stone, straight

1шт.

23

258269A1

GUARD

- stone, offset

1шт.
