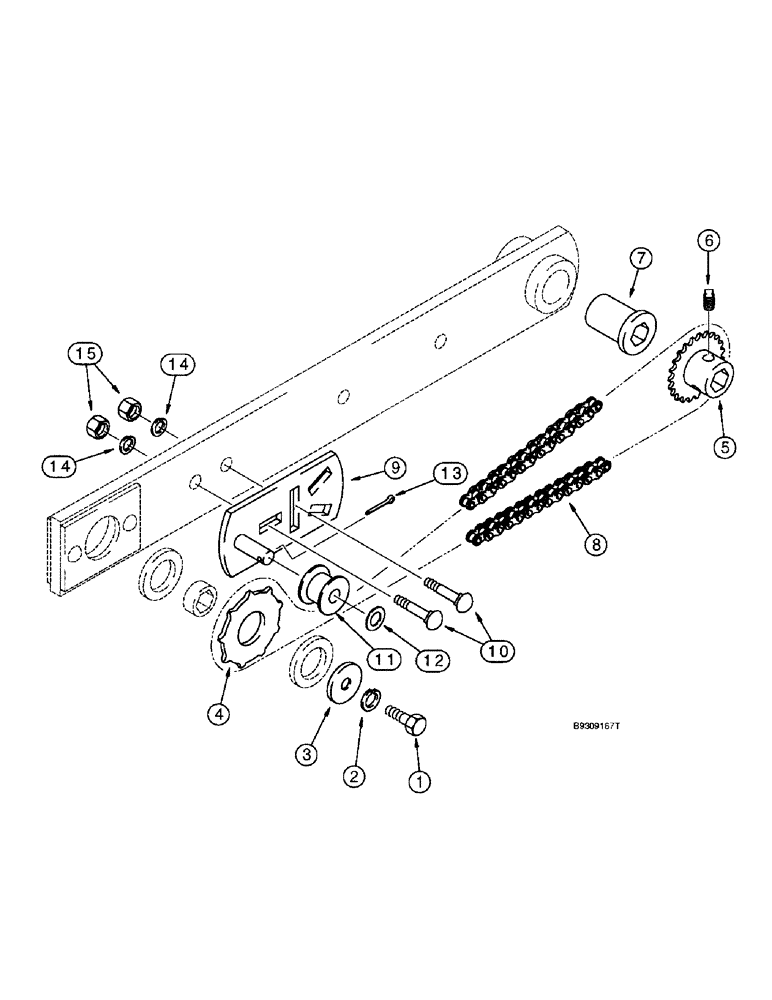

Запчасти Case IH 955 (9A-066) - MAIN DRIVE, 12, 16 AND 24 ROW NARROW - FRONT FOLD, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - special

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

4

116189A1

SPROCKET ASSY.

SPROCKET - main drive, 9 teeth

1шт.

5

1277743C1

DRIVING SPROCKET

SPROCKET - drive, 23 teeth, driven

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

7

90335C2

BUSHING

- drive shaft

1шт.

8

127426A1

CHAIN (AG)

CHAIN - wheel drive, use 53 links of 569089R91 bulk chain, (1) 242-1310 connecting link and (1) 242-1710 offset link

1шт.

9

96140C3

PLATE

- drive wheel idler

1шт.

10

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

2шт.

11

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

12

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

13

432-1216

COTTER PIN,3/16" x 1"

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.
