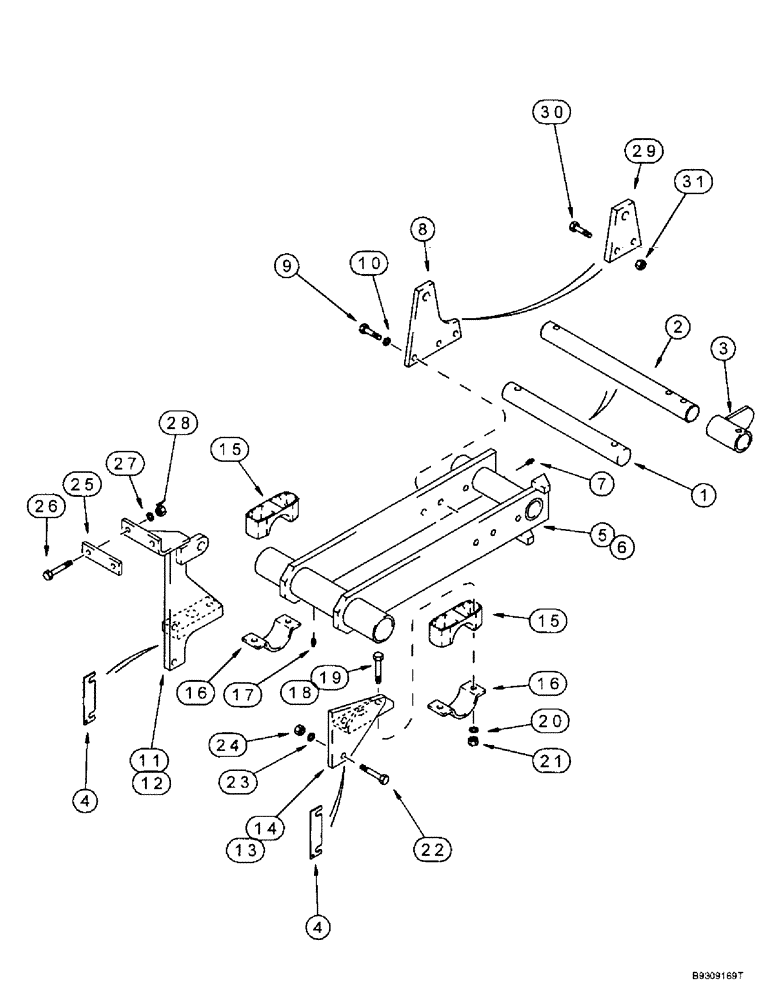

Запчасти Case IH 955 (9A-096) - FRONT CARRYING WHEELS, WHEEL FRAME MOUNTING, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

1250869C1

ROD

SHAFT - axle, 12 row narrow

2шт.

2

117065A2

SHAFT

- axle, 8 row wide

2шт.

3

135178A1

TUBE

- spacer, 8 row wide only

2шт.

4

131614A1

SHIM

- wheel arm mounting

1шт.

5

1995864C1

ASSEMBLY

FRAME - wheel, right-hand

1шт.

6

1995865C1

ASSEMBLY

FRAME - wheel, left-hand

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

8

109768A2

PLATE

BRACKET - cylinder anchor (Used on planters without fertilizer attachment)

2шт.

9

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

6шт.

10

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

11

109729A1

BRACKET

- wheel cylinder, right-hand

1шт.

12

109730A1

BRACKET

- wheel cylinder, left-hand

1шт.

13

109725A1

BRACKET

- mounting, wheel frame, right-hand

1шт.

14

109726A1

BRACKET

- mounting, wheel frame, left-hand

1шт.

15

58918C1

BEARING HALF

- wheel shaft

4шт.

16

540979R1

BEARING CAP,3"

CAP - bearing, wheel shaft

4шт.

17

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight, 1/4 PT x 7/8 inch

4шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch (8 used on planters with fertilizer attachment)

4шт.

19

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch (Used on planters without fertilizer attachment)

4шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

21

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

22

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

8шт.

23

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

24

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

25

114788A1

BAR

PLATE - backup (2 used on 12 row narrow, 4 used on 8 row wide

2шт.

26

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

4шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

425-1010

NUT,5/8"-11, G5

4шт.

29

1995897C2

PLATE

BRACKET - cylinder anchor (Used on planters with fertilizer attachment)

2шт.

30

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, Used on planters with fertilizer attachment

4шт.

31

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC (Used on planters with fertilizer attachment)

4шт.
