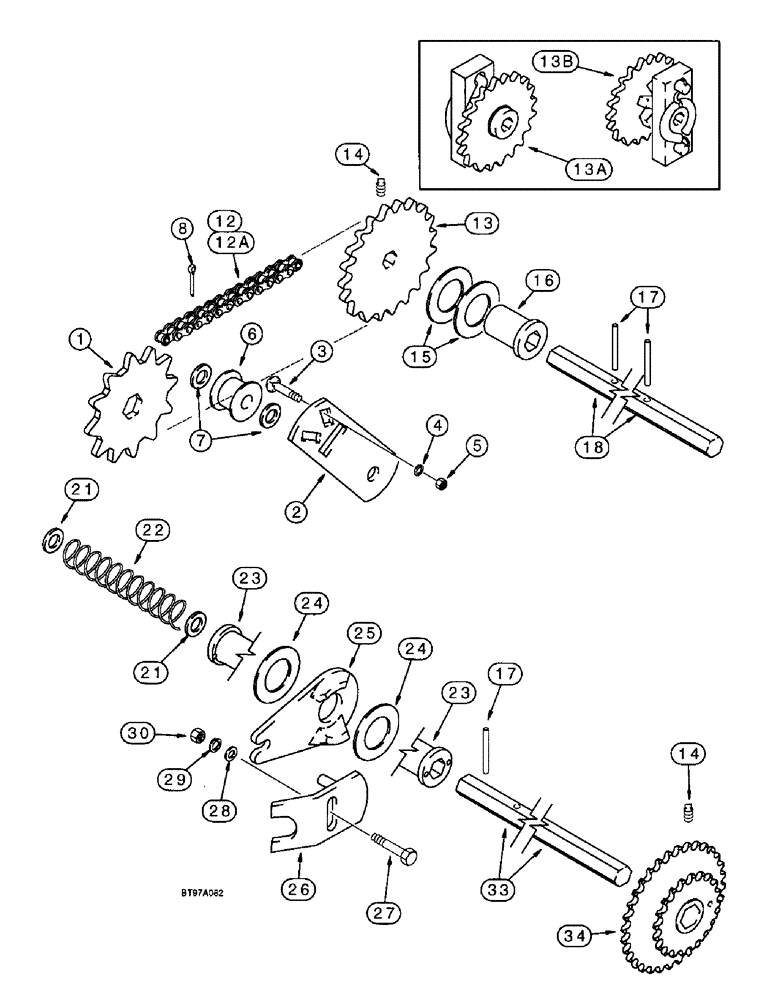

Запчасти Case IH 955 (9B-04) - PRIMARY SEED DRIVE, 6/11 ROW & 8/15 ROW SOLID ROW CROP 8 ROW & 12 ROW W/22 INCH ROW SPACING (09) - CHASSIS/ATTACHMENTS

1

1277737C1

SPROCKET

- wheel, 12 teeth

2шт.

2

96140C3

PLATE

- drive wheel idler

1шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

7

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

8

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

NSS

NOT SOLD SEPARAT

CHAIN - wheel drive (Use 55 links from bulk chain 569089R91 and 1 connecting link 1277928C91)

2шт.

12a

1277928C91

LINK

- chain connecting

1шт.

13

1277743C1

DRIVING SPROCKET

SPROCKET - drive, 23 teeth (8 row narrow)

2шт.

13a

1277925C92

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, 23 teeth (6 row wide) (Parts list page 9B-9)

1шт.

13b

1277926C92

RATCHET

SPROCKET ASSEMBLY - right-hand drive ratchet, 23 teeth (6 row wide) (Parts list page 9B-9)

1шт.

14

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

6шт.

15

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch (8 row narrow)

4шт.

16

90335C2

BUSHING

- drive shaft

2шт.

17

19795R1

PIN,1/4" x 1 3/4", Coiled

3-4шт.

18

96086C2

SHAFT

- drive, hex, 22 (7/8) x 1210 mm (47-5/8 inch) long, wheel seed, 8 row narrow

1шт.

18

1986125C1

SHAFT

- drive, hex, 22 (7/8) x 1151 mm (45-11/32 inch) long, wheel seed, 6 row wide

1шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2-4шт.

22

1264302C1

SPRING

- clutch

1-2шт.

23

1264313C1

CLUTCH

- drive and driven, left-hand (6 row wide and 8 row narrow)

2шт.

23

1264314C1

CLUTCH

- drive and driven, right-hand (8 row narrow only)

2шт.

24

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

2-4шт.

25

90344C1

PLATE

- clutch throwout

1-2шт.

26

91245C1

SUPPORT

THROWOUT - clutch

1-2шт.

27

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1-2шт.

28

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1-2шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1-2шт.

30

425-1010

NUT,5/8"-11, G5

1-2шт.

33

90561C1

SHAFT

- drive, hex, 22 (7/8) x 600 mm (23-5/8 inch) long (6 row wide)

1шт.

33

90559C1

SHAFT

- drive, hex, 22 (7/8) x 800 mm (31-1/2 inch) long (8 row narrow)

1шт.

34

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.
