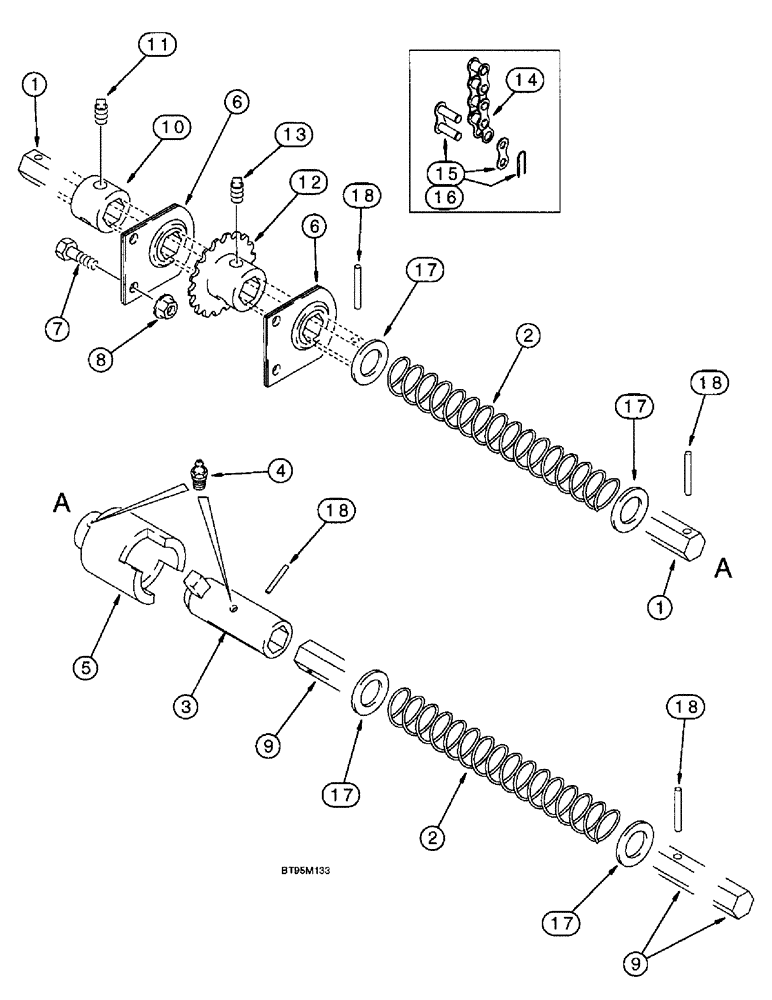

Запчасти Case IH 955 (9B-32) - SECONDARY SEED DRIVE, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

179395A1

BAR

SHAFT - drive, hex, 22 (7/8) x 4332 mm (170-9/16 inch) long, center

2шт.

2

1264302C1

SPRING

- clutch, wing driver

4шт.

3

102602A2

BLOCK DRIVER

DRIVER - wing connector

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

5

102601A2

SOCKET

CONNECTOR - socket, wing drive

2шт.

6

102724A1

BALL BEARING

HANGER - bearing

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

185279A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1450 mm (57-1/16 inch) long, wing

2шт.

10

141572C2

COLLAR

HUB - sprocket

3шт.

11

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

6шт.

12

103681A1

SPROCKET

- 18 teeth, module drive

2шт.

13

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

14

1547686C1

CHAIN (AG)

CHAIN - drive, use 111 links from 1790D bulk chain, (1) 241-1314 connecting link and (1) 241-1714 offset link

2шт.

15

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, drum drive chain

2шт.

16

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch, drum drive chain

2шт.

17

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

8шт.

18

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

8шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
