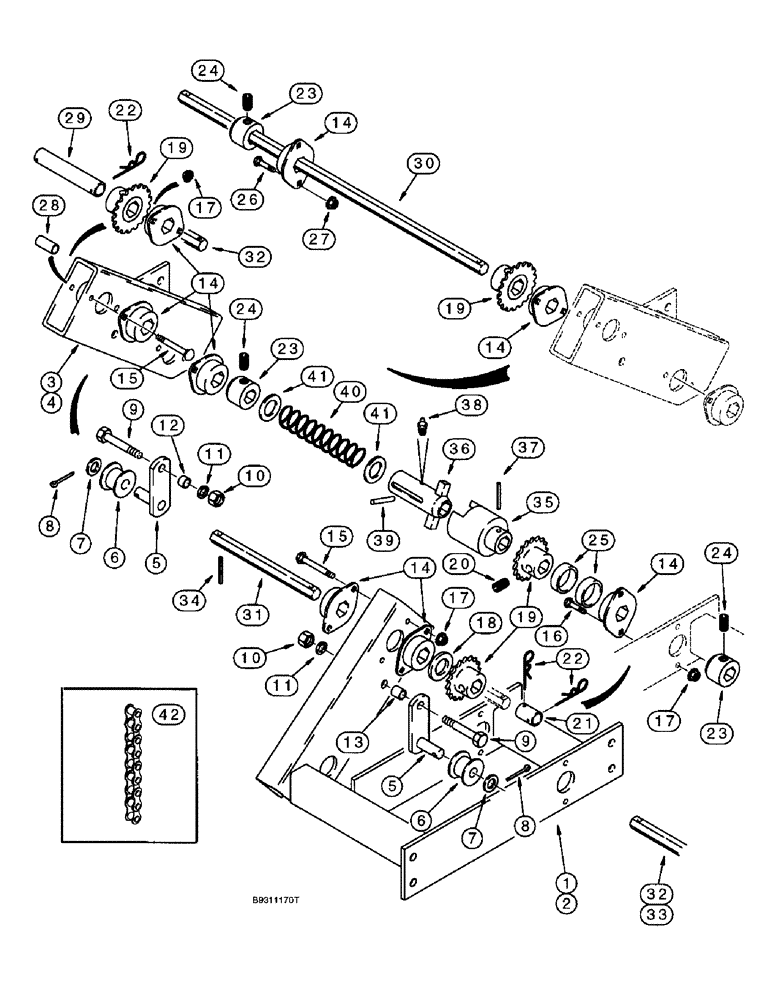

Запчасти Case IH 955 (9B-40) - DRY FERTILIZER DRIVE, UPPER DRIVE AND SUPPORTS, 8 ROW WIDE & 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

135388A1

BRACKET

SUPPORT - bearing and auger, wing, right-hand

1шт.

2

135387A1

BRACKET

SUPPORT - bearing and auger, wing, left-hand (Not shown)

1шт.

3

135395A1

BRACKET

SUPPORT - bearing and auger, center, right-hand

1шт.

4

135394A1

BRACKET

SUPPORT - bearing and auger, center, left-hand (Not shown)

1шт.

5

113509A1

FRONT IDLER

IDLER - chain, auger drive

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

7

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

8

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

4шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 1/2 inch

2шт.

13

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

- 1/2 X 11/16 inch, pipe

3шт.

14

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

18шт.

15

433-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - carriage, 5/16 NC x 2-3/4 inch

16шт.

16

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

28шт.

18

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

8шт.

19

110997A1

SPROCKET ASSY.

SPROCKET - 18 teeth, auger drive

8шт.

20

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket headless, 1/2 NC x 3/4 inch, cup point

16шт.

21

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

- 1-7/16 inch (36 mm) long, auger

2шт.

22

520177R1

PIN

- hair, 3/16 inch

8шт.

23

141572C2

COLLAR

HUB - sprocket

6шт.

24

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket headless, 1/2 NC x 3/4 inch, cup point

12шт.

25

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm

4шт.

26

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

28

493933R1

SPACER,5/8" Tube x 1 7/16"

- tube, 5/8 x 1-7/16 inch

6шт.

29

135386A1

COUPLING

- 5 inch (126 mm) long, auger

2шт.

30

135383A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1014 mm (39-15/16 inch) long (8 row wide and 12 row narrow)

2шт.

31

117084A2

BAR

JACKSHAFT - drive, hex, 7/8 (22) x 7 inch (178 mm) long, fertilizer auger

4шт.

32

135381A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1810 mm (71-1/4 inch) long, wing (12 row narrow)

2шт.

33

135382A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1440 mm (56-11/16 inch) long, wing (8 row wide)

2шт.

34

438-32024

PIN,5/16" x 1 1/2", Coiled

8шт.

35

102601A2

SOCKET

CONNECTOR - socket, wing driver

2шт.

36

102602A2

BLOCK DRIVER

DRIVER - wing connector

2шт.

37

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

(2 used with 8 row wide; 4 used with 12 row narrow) 1/4" x 1 1/2", Coiled

2шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

39

438-31628

PIN,1/4" x 1 3/4", Coiled

4шт.

40

1264302C1

SPRING

- clutch, wing driver

2шт.

41

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

4шт.

42

135385A1

CHAIN (AG)

CHAIN - fertilizer auger drive, use 27 links of 569088R91 bulk chain and (1) 242-138 connecting link

4шт.

43

242-138

LINK,7.92mm Pitch

LINK - connecting, No. 2040, 1 inch pitch, not shown

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.
