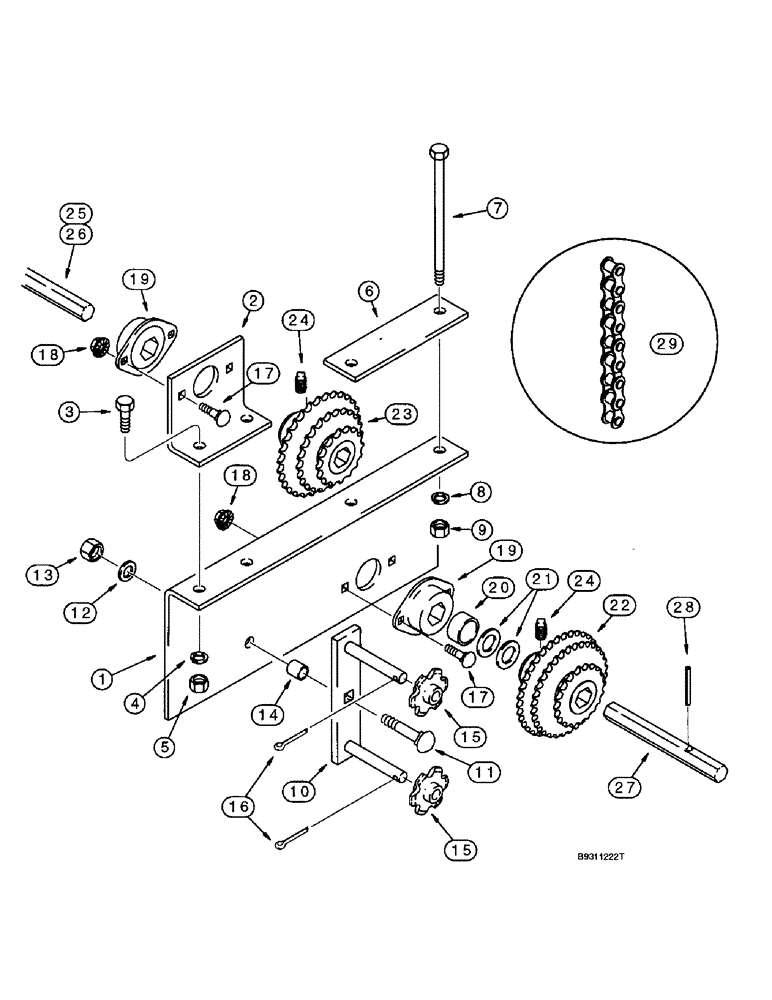

Запчасти Case IH 955 (9B-42) - DRY FERTILIZER DRIVE, LOWER DRIVE AND SUPPORTS, 8 ROW WIDE & 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

108519A3

BRACKET

- support, fertilizer drive bearing

2шт.

2

135400A1

BRACKET

SUPPORT - bearing, outer wing

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

109025A1

BAR

- support, Serial Range: bracket,-frame

2шт.

7

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

135378A1

ARM ASSY.

ARM - chain tightener

2шт.

11

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

144812C2

SPACER

- 27 x 33 x 17 mm

2шт.

15

472344R3

SPROCKET

- idler, tightener arm

4шт.

16

432-1216

COTTER PIN,3/16" x 1"

4шт.

17

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

8шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

19

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch, hex bore

4шт.

20

493933R1

SPACER,5/8" Tube x 1 7/16"

- tube, 5/8 x 1-7/16 inch

2шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

4шт.

22

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth, fertilizer driver

2шт.

23

135377A1

SPROCKET ASSY.

SPROCKET - triple, 16, 24 and 30 teeth, shaft drive (Standard)

2шт.

23

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth, shaft drive (Optional)

2шт.

24

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

8шт.

25

135381A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1810 mm (71-1/4 inch) long, wing (12 row narrow)

2шт.

26

135382A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1440 mm (56-11/16 inch) long, wing (8 row wide)

2шт.

27

135384A1

BAR

SHAFT - drive, hex, 22 (7/8) x 160 mm (6-5/16 inch) long, wheel main drive

2шт.

28

438-31628

PIN,1/4" x 1 3/4", Coiled

2шт.

29

135380A2

CHAIN (AG)

CHAIN - fertilizer drive, lower, use 45 links of 569088R91 bulk chain and (1) 242-138 connecting link

2шт.

30

242-138

LINK,7.92mm Pitch

LINK - connecting, No. 2040, 1 inch pitch, not shown

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.
