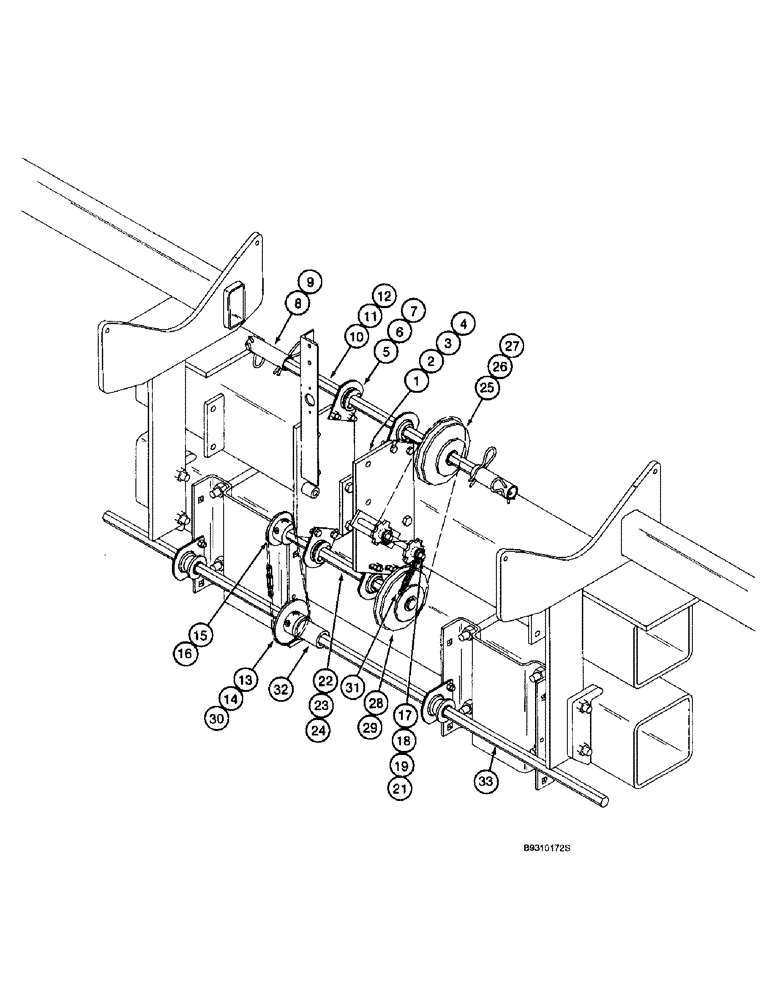

Запчасти Case IH 955 (9B-44) - DRY FERTILIZER DRIVE, CENTER FRAME, 12 & 16 ROW NARROW - FRONT FOLD, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

116939A1

BRACKET

- center drive

2шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

102724A1

BALL BEARING

HANGER - bearing

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

425-106

NUT,3/8"-16, Cl 5

8шт.

8

141455C1

TUBE,33.4 mm OD, 111 mm Length

COUPLING - 4-3/8 inch (111 mm) long, dry fertilizer shaft, 12 and 16 row narrow

2шт.

8

189914A1

COUPLING

- 201 mm (7-15/16 inch) long, dry fertilizer shaft, 12 row wide

2шт.

9

520177R1

PIN

- hair, 3/16 inch

4шт.

10

116477A2

SHAFT

- drive, hex, 22 (7/8) x 508 mm (20 inch) long, auger

1шт.

11

438-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

12

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

2шт.

13

110996A1

SPROCKET ASSY.

SPROCKET - 24 teeth

1шт.

14

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

15

110997A1

SPROCKET ASSY.

SPROCKET - 18 teeth

1шт.

16

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

17

141074C2

ARM

- chain tightener

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

472344R3

SPROCKET

- idler

2шт.

21

432-1216

COTTER PIN,3/16" x 1"

2шт.

22

116478A1

SHAFT

JACKSHAFT - drive, hex, 7/8 (22) x 16 inch (406 mm) long, dry fertilizer

1шт.

23

438-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

24

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

2шт.

25

1267911C1

SPROCKET

- triple, 16, 24 and 30 teeth

1шт.

26

439-1436

HEADED PIN,1/4" x 2 1/4"

PIN - headed, 1/4 x 2-1/4 inch, grade 2

1шт.

27

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

28

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth, fertilizer drive

1шт.

29

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

30

117972A1

CHAIN (AG)

CHAIN - fertilizer drive, lower, use 30 links from 569088R91 bulk chain, plus (1) 242-138 connecting link and (1) 242-178 offset link, see below

1шт.

31

117973A1

CHAIN (AG)

CHAIN - fertilizer drive, upper, use 43 links from 569088R91 bulk chain, plus (1) 242-138 connecting link and (1) 242-178 offset link, see below

1шт.

31a

242-138

LINK,7.92mm Pitch

LINK - connecting, No. 2040, 1 inch pitch, not shown

1шт.

31b

242-178

LINK,25.4mm Pitch

LINK - offset, double pitch, No. 2040, not shown

1шт.

32

90335C2

BUSHING

- drive shaft

1шт.

33

1254215C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3885 mm (153 inch) long, 12 and 16 row narrow

1шт.

33

1254282C1

BAR

SHAFT - drive, hex, 22 (7/8) x 3000 mm (118-1/8 inch) long, 12 row wide

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.
