(9B-68) - SECONDARY FERTILIZER DRIVE - DRY, 8 ROW NARROW - RIGID

Запчасти Case IH 955 (9B-68) - SECONDARY FERTILIZER DRIVE - DRY, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

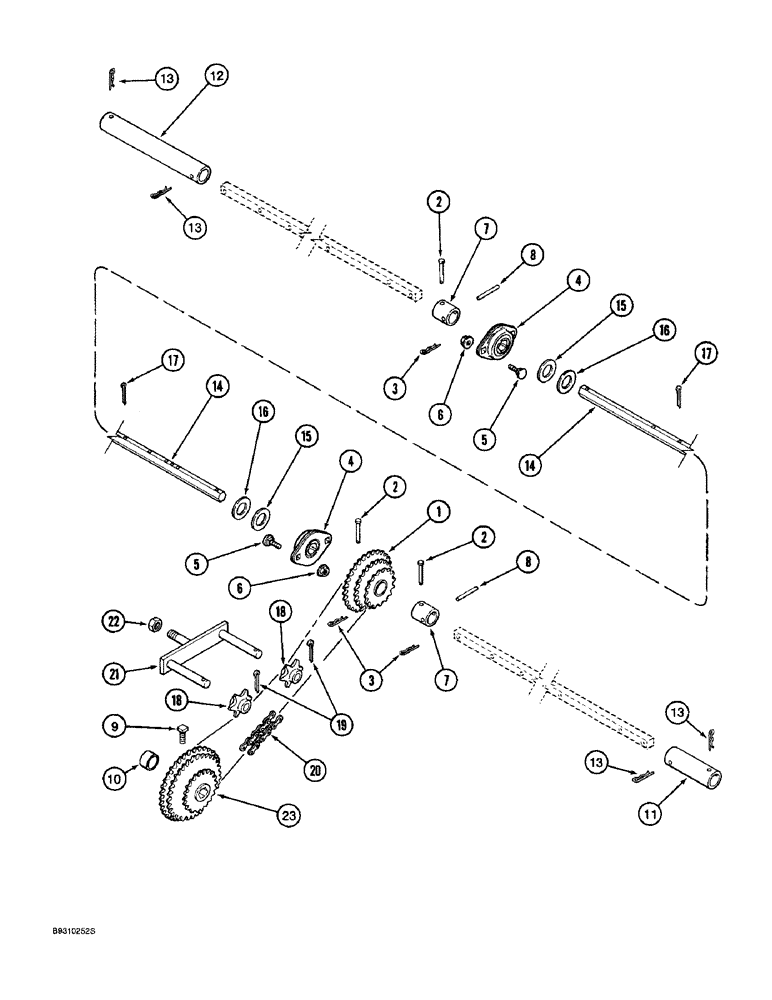

Схема запчастей Case IH 955 - (9B-68) - SECONDARY FERTILIZER DRIVE - DRY, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS
19
2
18
18
17
6
3
22
2
14
2
15
5
15
13
6
7
23
11
4
17
12
3
8
20
14
4
8
1
13
13
5
21
16
9
16
13
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1267911C1

SPROCKET

- triple, 16, 24 and 30 teeth

1шт.

1

1264352C1

SPROCKET ASSY.

SPROCKET - triple, 20, 34 and 36 teeth, not shown

1шт.

2

439-1432

HEADED PIN,1/4" x 2", G2

PIN - headed, 1/4 x 2 inch, grade 2

3шт.

3

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

3шт.

4

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

2шт.

5

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

- 1-7/16 inch (36 mm) long

2шт.

8

454894R1

LOCK PIN,7/32" x 1 3/4", Slotted

Pin, 7/32" x 1 3/4", Slotted

2шт.

9

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

10

144812C2

SPACER

- 27 x 33 x 17 mm

1шт.

11

141455C1

TUBE,33.4 mm OD, 111 mm Length

COUPLING - 4-3/8 inch (111 mm) long, right-hand

1шт.

12

147495C1

TUBE,33.4 mm OD, 251 mm Length

COUPLING - 9-7/8 inch (251 mm) long, left-hand

1шт.

13

520177R1

PIN

- hair, 3/16 inch

4шт.

14

147496C2

SHAFT

- drive, hex, 22 (7/8) x 850 mm (33-1/2 inch) long

1шт.

15

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

16

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

18

472344R3

SPROCKET

- idler

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

137465C92

CHAIN (AG)

CHAIN ASSEMBLY - drive, use 57 links from 569088R91 bulk chain, plus (1) 1277927C91 connecting link, see below

1шт.

21

141074C2

ARM

- chain tightener

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth, driver

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

1277927C91

LINK

- connecting

1шт.
