(9B-74) - HYDRAULIC FERTILIZER DRIVE, AFS PLANTER, 12 ROW, 16 ROW NARROW & 12/23 SRC

Запчасти Case IH 955 (9B-74) - HYDRAULIC FERTILIZER DRIVE, AFS PLANTER, 12 ROW, 16 ROW NARROW & 12/23 SRC (09) - CHASSIS/ATTACHMENTS

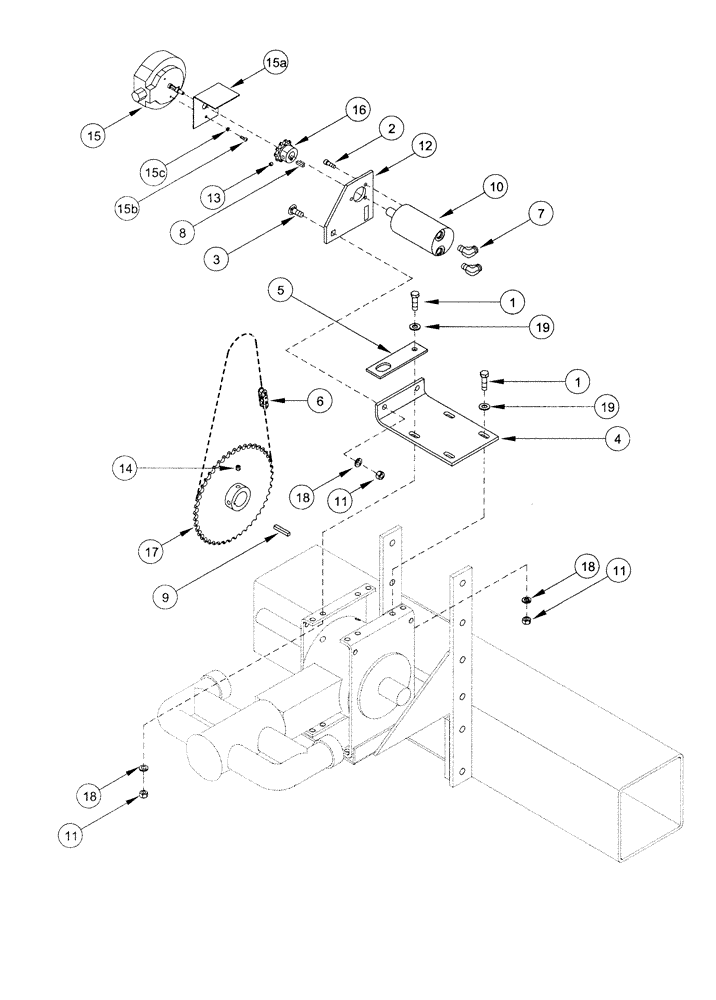

Схема запчастей Case IH 955 - (9B-74) - HYDRAULIC FERTILIZER DRIVE, AFS PLANTER, 12 ROW, 16 ROW NARROW & 12/23 SRC (09) - CHASSIS/ATTACHMENTS
15b
19
5
18
6
18
11
19
2
8
18
14
17
12
13
3
11
9
16
1
10
7
15a
1
4
11
15
15c
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

2

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

3шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

4

282035A1

BRACKET

- liquid fertilizer

1шт.

5

295034A1

BRACKET

- tool storage

1шт.

6

NSS

NOT SOLD SEPARAT

CHAIN - roller, use 61 links of 1790D bulk chain, one connector link 241-1314 and one offset link 241-1714

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

8

475642R1

KEY,3/16" Sq x 11/16", Par

- 3/16 square x 11/16 inch long

1шт.

9

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

10

284797A1

MOTOR

- meter drive

1шт.

10

284797A1R

REMAN-HYD MOTOR

955 CASE IH TRAILING PLANTER, meter drive, AFS PLANTER, 12 ROW, 16 ROW NARROW & 12/23 SRC (10/95-)

1шт.

10

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

11

425-106

NUT,3/8"-16, Cl 5

6шт.

12

304618A1

BRACKET

- motor mount

1шт.

13

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

2шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT - hex socket, 1/4 NF x 3/4 inch

3шт.

15

296164A1

SENSOR

KIT - application rate sensor

1шт.

15a

294473A1

BRACKET

- anti-rotation

1шт.

15b

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

3шт.

15c

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

16

232893A1

SPROCKET

- drive (10 tooth)

1шт.

17

293573A1

SPROCKET ASSY.

SPROCKET - 45 tooth

1шт.

18

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

- flat, 13/32 x 133/16 x 1/16 inch, hardened

4шт.
