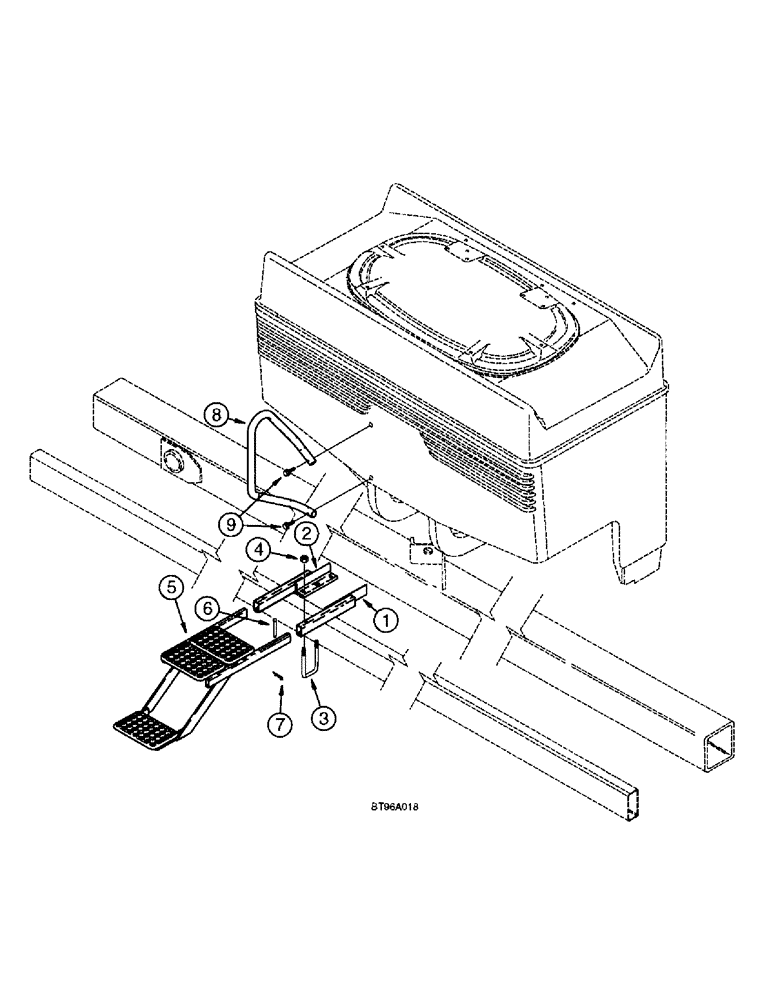

Запчасти Case IH 955 (9C-08) - PLATFORM AND STEPS, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

177117A1

BRACKET

- platform mounting, right-hand

1шт.

2

177116A1

BRACKET

- platform mounting, left-hand

1шт.

3

188585A1

U-BOLT,5/8" - 11 x 77.20mm W x 211.30mm L

- 5/8 inch NC, 3 x 8 inch

2шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

188919A1

STEP

PLATFORM - hopper access, two step

1шт.

6

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

2шт.

7

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

8

197217A1

HANDLE

- platform, hopper access

1шт.

9

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

- self-tapping, hex washer head, 3/8 NC x 2 inch

2шт.
