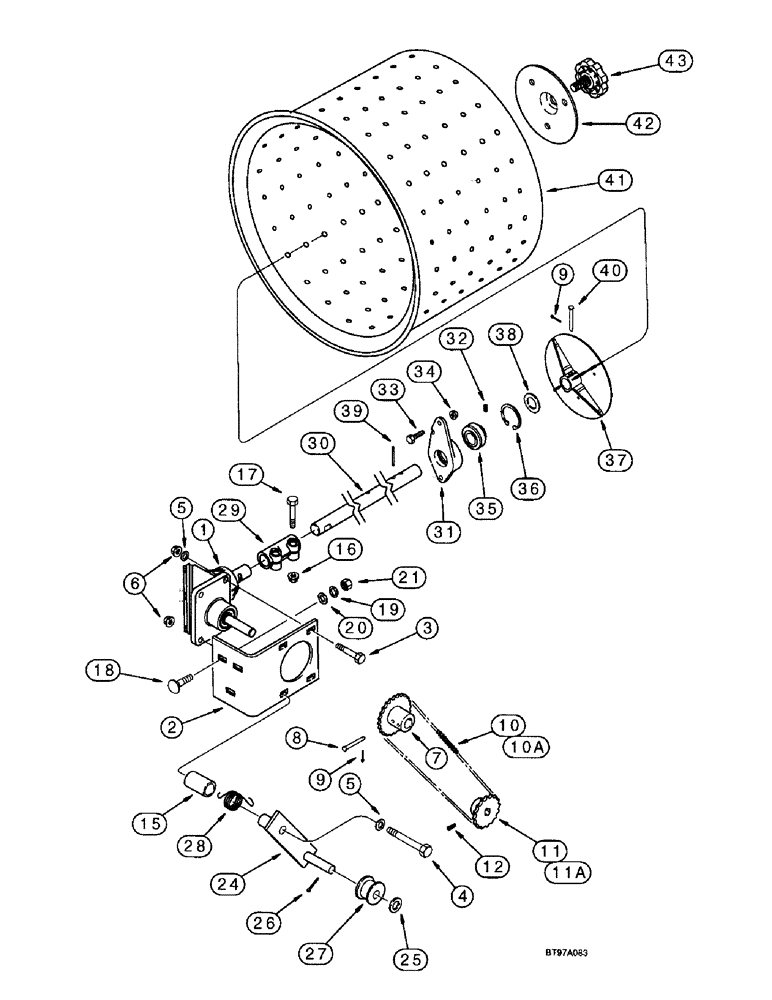

Запчасти Case IH 955 (9C-38) - SEED DRUM DRIVE, ALL RIGID, VERTICAL FOLD, FRONT FOLD AND PARALLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1250704C91

HOUSING

GEARBOX ASSEMBLY - seed drum drive, see page 9C-49

1шт.

2

1986102C1

BRACKET

- gearbox mounting

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

127168A1

SPROCKET ASSY.

SPROCKET - 24 teeth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

1547686C1

CHAIN (AG)

CHAIN - drive, use 111 links from 1790D bulk chain, (1) 241-1314 connecting link and (1) 241-1714 offset link, drum drive, see below (All rigid and vertical fold)

1шт.

10a

116273A2

CHAIN (AG)

CHAIN - drive, use 97 links from 1790D bulk chain, (1) 241-1314 connecting link and (2) 241-1714 offset links, drum drive, see below (All front fold except parallel front fold planter)

1шт.

10a

242088A1

CHAIN (AG)

CHAIN - drive, use 127 links from 1790D bulk chain, (1) 241-1314 connecting link and (3) 241-1714 offset links, drum drive, see below (Parallel front fold planter only)

1шт.

11

103681A1

SPROCKET

- 18 teeth (All rigid, vertical fold and parallel front fold)

1шт.

11a

116271A2

SPROCKET ASSY.

SPROCKET - triple, 24, 20 and 34 teeth (All front fold)

1шт.

12

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

1шт.

15

127030A1

TUBE,10.34 mm ID, 15.88 mm OD

SPACER - tightener arm

1шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

18

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

3шт.

19

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

3шт.

24

1547684C2

BAR ASSY.

ARM - tightener

1шт.

25

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

26

432-1216

COTTER PIN,3/16" x 1"

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

28

1277854C2

SPRING

- idler

1шт.

29

1250703C2

CLAMP

- drum shaft

1шт.

30

137132C3

SHAFT

- drum

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

2шт.

31

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

- bearing

1шт.

32

484-2254

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex socket headless, 1/4 NF x 1/4 inch, cone point

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

35

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

36

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

37

137129C1

HOUSING

- drum drive

1шт.

38

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

39

38-31628

PIN,1/4" x 1 3/4", Coiled

1шт.

40

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

1шт.

41

REF

INSTRUCTION

DRUM - seed, see page 9C-47 for drum options

1шт.

42

141509C1

CAP

PLATE - drum end

1шт.

43

141681C2

HANDLE

KNOB - drum

1шт.
