(9C-76) - SEED HOPPER, SEED GROWERS SPECIAL, ALL RIGID, VERTICAL FOLD & FRONT FOLD PLANTERS

Запчасти Case IH 955 (9C-76) - SEED HOPPER, SEED GROWERS SPECIAL, ALL RIGID, VERTICAL FOLD & FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

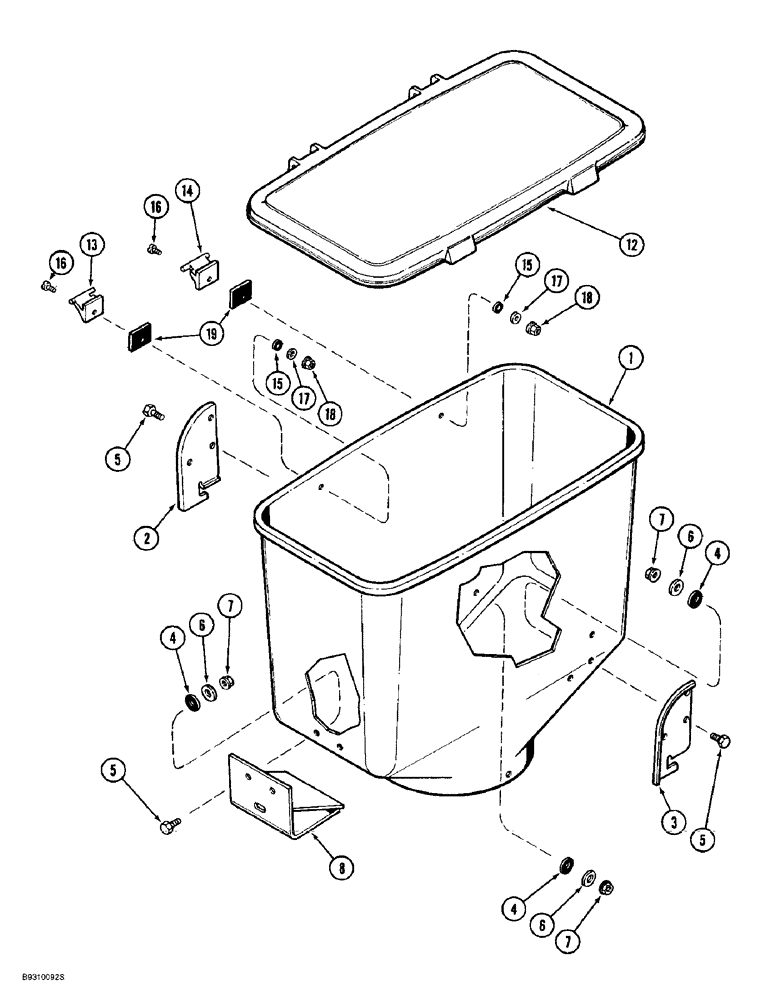

Схема запчастей Case IH 955 - (9C-76) - SEED HOPPER, SEED GROWERS SPECIAL, ALL RIGID, VERTICAL FOLD & FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS
5
7
6
16
6
18
7
6
7
1
4
3
2
17
4
16
5
5
19
8
17
15
15
14
4
12
18
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1263834C1

HOPPER

- seed

1шт.

2

144878C3

BRACKET

SUPPORT - pivot bracket, left-hand

1шт.

3

144879C3

BRACKET

SUPPORT - pivot bracket, right-hand

1шт.

4

134289C1

RUBBER WASHER

- rubber, hopper

8шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

6

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

8

1277800C2

SUPPORT ASSY.

SUPPORT - strike

1шт.

12

137128C3

COVER

- seed hopper

1шт.

13

141111C2

HINGE

- hopper cover, left-hand

1шт.

14

1254172C2

HINGE

- hopper cover, right-hand

1шт.

15

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

- rubber

2шт.

16

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

17

495-31022

WASHER,#10

2шт.

18

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

19

1254428C1

PAD

- hopper cover hinge

2шт.
