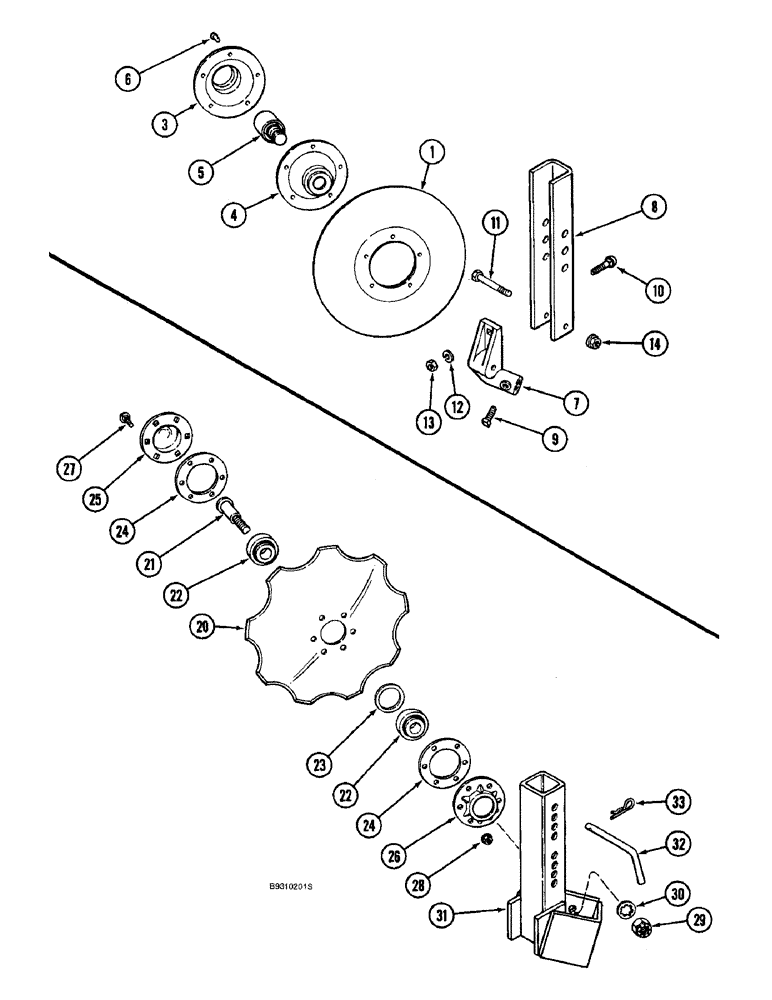

Запчасти Case IH 955 (9D-22) - DISC FURROWING ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1277699C91

DISC

ASSEMBLY - furrowing, 9-1/4 inch

1шт.

1277698C91

DISC

ASSEMBLY - furrowing, 12 inch

2шт.

1

NSS

NOT SOLD SEPARAT

DISC - furrowing

1шт.

3

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

- bearing, outer

1шт.

4

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING - bearing, inner

1шт.

5

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

BEARING - ball, includes spindle, furrowing disc

1шт.

6

NSS

NOT SOLD SEPARAT

RIVET - disc (Order 990323R91 one pound package)

5шт.

7

1277697C1

BRACKET

- furrowing disc (Used with 1277699C91 disc)

1шт.

7

1277696C1

BRACKET

- furrowing disc (Used with 1277698C91 disc)

1шт.

8

1345421C1

SUPPORT

BRACKET - furrowing disc

1шт.

9

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

4шт.

10

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

6шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

1337540C1

DISC

ASSEMBLY - notched disc furrowing attachment, Includes: Ref. 20 - 30

4шт.

20

1337541C1

DISC

- notched, 12 inch, furrowing attachment

2шт.

21

1337546C1

STUD

SHAFT - stud, notched disc furrowing attachment

1шт.

22

1337998C1

BALL BEARING,19.18mm ID x 52mm OD x 21.08mm W

- shaft, notched disc furrowing attachment

2шт.

23

1337544C1

RING

- retainer, notched disc furrowing attachment

1шт.

24

1337543C1

GASKET

- flange, notched disc furrowing attachment

2шт.

25

1337547C1

FLANGE

- bearing, outer, notched disc furrowing attachment

1шт.

26

1337542C1

FLANGE

- bearing, inner, notched disc furrowing attachment

1шт.

27

34-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, notched disc furrowing attachment

6шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Notched disc furrowing attachment

6шт.

29

231-24410

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF, Notched disc furrowing attachment

1шт.

30

393-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch, notched disc furrowing attachment

1шт.

31

1337548C1

TUBE ASSY.

TUBE - mounting disk, notched furrowing attachment

2шт.

32

1337549C1

PIN

- retainer, tube, notched furrowing attachment

2шт.

33

407211R1

CLIP

PIN - hair, cotter, notched furrowing attachment

2шт.
