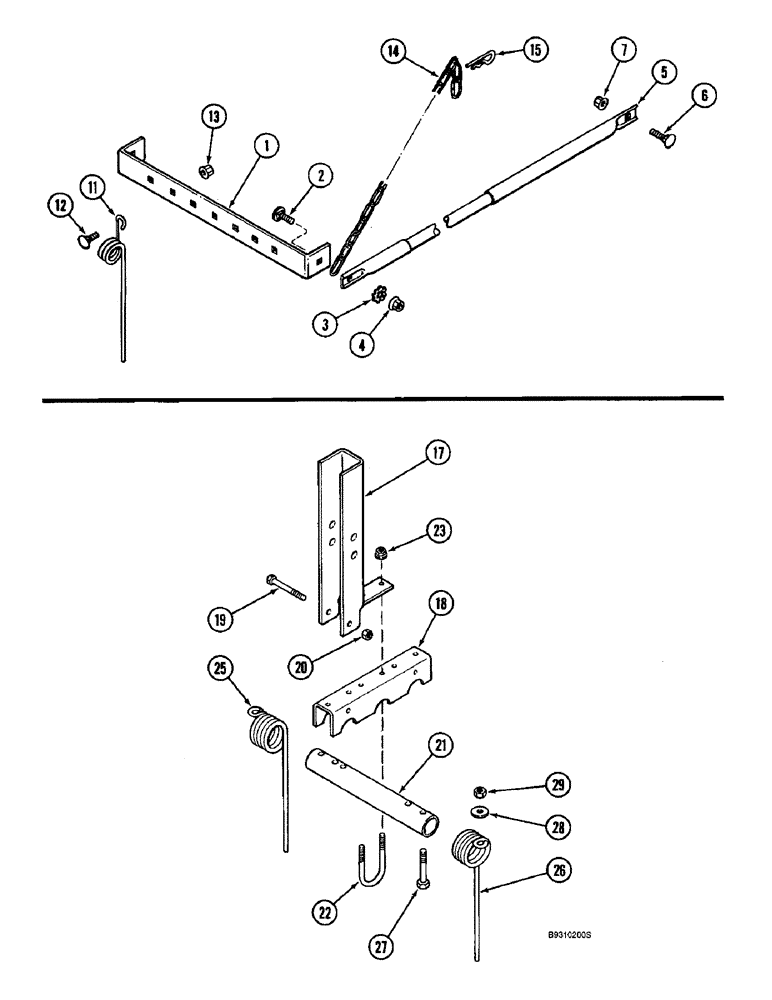

Запчасти Case IH 955 (9D-24) - SPRING TOOTH INCORPORATOR, ALL RIGID, VERTICAL FOLD, AND PARELLEL FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1263671C1

CHANNEL

BRACKET - support, rear, rear

1шт.

2

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

2шт.

3

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

1279951C1

CABLE

- spring tooth

2шт.

6

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

11

1261265C2

TOOTH

- incorporator

7шт.

12

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

7шт.

13

231-5146

FLANGE NUT,3/8"-16

7шт.

14

1263672C1

CHAIN (AG)

CHAIN - support

2шт.

15

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

2шт.
