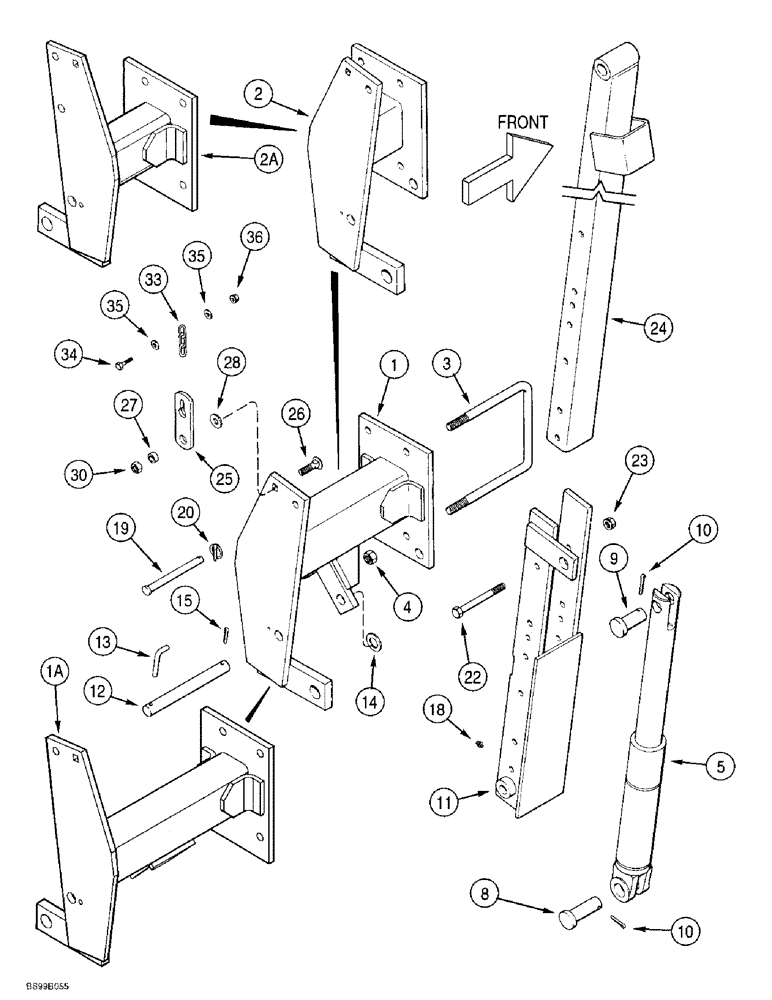

Запчасти Case IH 955 (9E-06) - ROW MARKER INNER SECTION, 6 ROW WIDE, 8 ROW NARROW AND 12 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

144877C3

BRACKET

- pivot, marker, long, right-hand, 6 row wide and 8 row narrow

1шт.

1a

100234C3

BRACKET

- pivot, marker, long, left-hand, 8 row wide, and 12 row narrow vertical fold

1шт.

2

100235C3

BRACKET

- pivot, marker, short, right-hand, 8 row wide and 12 row narrow vertical fold and 12 row narrow parallel front fold

1шт.

2a

133979C3

BRACKET

- pivot, marker, short, left-hand, 6 row wide, 8 row narrow and 12 row narrow parallel front fold

1шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, Serial Range: bracket-frame

4шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, marker lift, see page 8-93

2шт.

8

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

9

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

10

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

11

1277690C1

ARM

- pivot, right-hand

1шт.

11a

1277689C1

ARM

- pivot, left-hand, not shown

1шт.

12

100573C2

PIN,22.23mm OD x 210.8mm L

- 7/8 x 8-5/16 inch, arm

2шт.

13

813175C2

LOCK PIN,9.5mm OD

PIN - special, locking

2шт.

14

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

2шт.

15

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

18

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

19

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

20

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, 3/16 inch diameter

2шт.

22

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

6шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

24

100375C3

TUBE

ARM - marker, end, includes decal, 12 row narrow vertical fold and parallel front fold

2шт.

24

140796C93

TUBE,592 mm Length

ARM - marker, end, includes decal, 6 row wide and 8 row narrow

2шт.

24

140797C93

TUBE,592 mm Length

ARM - marker, end, includes decal, 8 row wide

2шт.

24a

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

25

125789C1

BAR

- chain pivot

2шт.

26

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2шт.

27

546587R2

BUSHING

- 17/32 ID x 11/32 inch long, link spacer

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

30

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

33

493952R1

CHAIN (AG)

CHAIN - marker, 6 row wide and 8 row narrow

2шт.

33

489767R92

CHAIN (AG)

CHAIN - marker, 8 row wide and 12 row narrow vertical fold and parallel front fold

2шт.

34

424-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 2

- hex, 1/4 NC x 1-1/4 inch, grade 2

2шт.

35

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 1/8 inch

4шт.

36

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.
