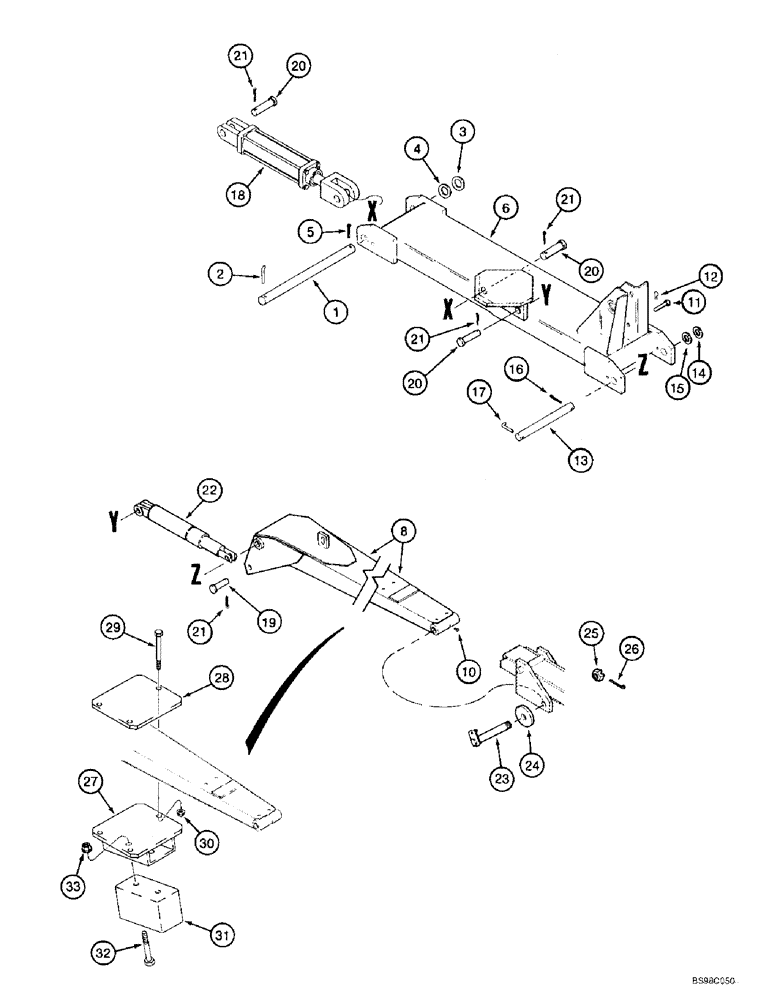

Запчасти Case IH 955 (9E-12) - ROW MARKER INNER SECTION, 16 ROW NARROW - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

120464A1

PIN

- pivot, inner arm

2шт.

2

491601R3

PIN

- pivot lock

2шт.

3

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 1/16 inch

2шт.

4

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

2шт.

5

432-3236

COTTER PIN,1/2" x 2 1/4"

Pin, Split (Cotter), 1/2" x 2 1/4"

2шт.

6

120666A3

TUBE ASSY.

ARM - row marker, includes decal

2шт.

7

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

8

121037A3

ARM

- marker, includes decal

2шт.

9

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically, not shown, see page 9F-115, item 8

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

11

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

2шт.

12

1978738C1

HAIR PIN COTTER

3/16"

2шт.

13

1268127C1

PIN,31.7mm OD x 325mm L

- pivot, 1-1/4 x 12-13/16 inch

2шт.

14

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

15

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

16

432-2430

COTTER PIN,3/8" x 1 7/8"

Pin, Split (Cotter), 3/8" x 1 7/8"

2шт.

17

813175C2

LOCK PIN,9.5mm OD

PIN - special

2шт.

18

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, marker, inner, parts list page 8-95

2шт.

19

120620A1

PIN

- cylinder pivot

2шт.

20

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

6шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

22

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, marker, outer, parts list page 8-93

2шт.

23

1268316C1

PIN

- lock

2шт.

24

1268322C1

WASHER

WASHER - spacer

4шт.

25

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

2шт.

26

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

2шт.

27

302309A1

BRACKET

- mounting, bumper, if used

2шт.

28

302310A1

PLATE

- bracket, to arm, if used

2шт.

29

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch, if used

6шт.

30

231-5346

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC, If used

6шт.

31

301470A1

BUMPER

- rubber, if used

2шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, if used

4шт.

33

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC, if used

4шт.
