(9E-20) - ROW MARKER LIFT MECHANISM, 24 ROW NARROW - FRONT FOLD, PRIOR

Запчасти Case IH 955 (9E-20) - ROW MARKER LIFT MECHANISM, 24 ROW NARROW - FRONT FOLD, PRIOR (09) - CHASSIS/ATTACHMENTS

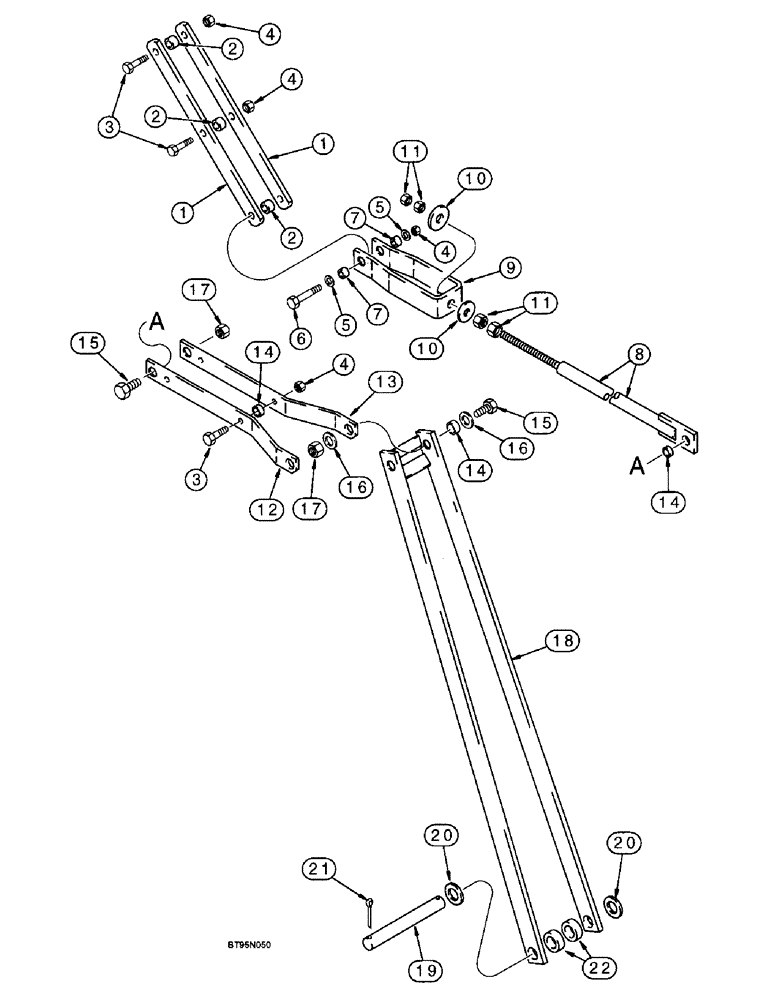

Схема запчастей Case IH 955 - (9E-20) - ROW MARKER LIFT MECHANISM, 24 ROW NARROW - FRONT FOLD, PRIOR (09) - CHASSIS/ATTACHMENTS
4
6
11
7
11
2
20
5
12
14
10
16
14
19
14
20
13
3
21
10
1
3
4
15
7
16
8
2
18
2
17
22
4
15
9
17
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126203A1

ARM

- row marker

2шт.

2

126206A1

BUSHING

- row marker arm

3шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

5шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

6

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

7

175765A1

SPACER

- clevis

2шт.

8

136720A1

ROD ASSY.

ROD - linkage adjustment

1шт.

9

136718A1

CLEVIS

- adjustment rod

1шт.

10

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch hardened

2шт.

11

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

12

175582A1

BAR

LINKAGE - adjustment rod, upper, left-hand

1шт.

13

175608A1

BAR

LINKAGE - adjustment rod, upper, right-hand

1шт.

14

175585A1

BUSHING

SPACER - linkage

5шт.

15

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

3шт.

16

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch hardened

4шт.

17

231-41412

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

3шт.

18

175593A1

BAR ASSY.

LINKAGE - adjustment rod, lower

1шт.

19

136727A1

PIN

- pivot, 1 x 8 inch

1шт.

20

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

2шт.

21

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

22

136709A1

SPACER

- cylinder, closed end

2шт.
