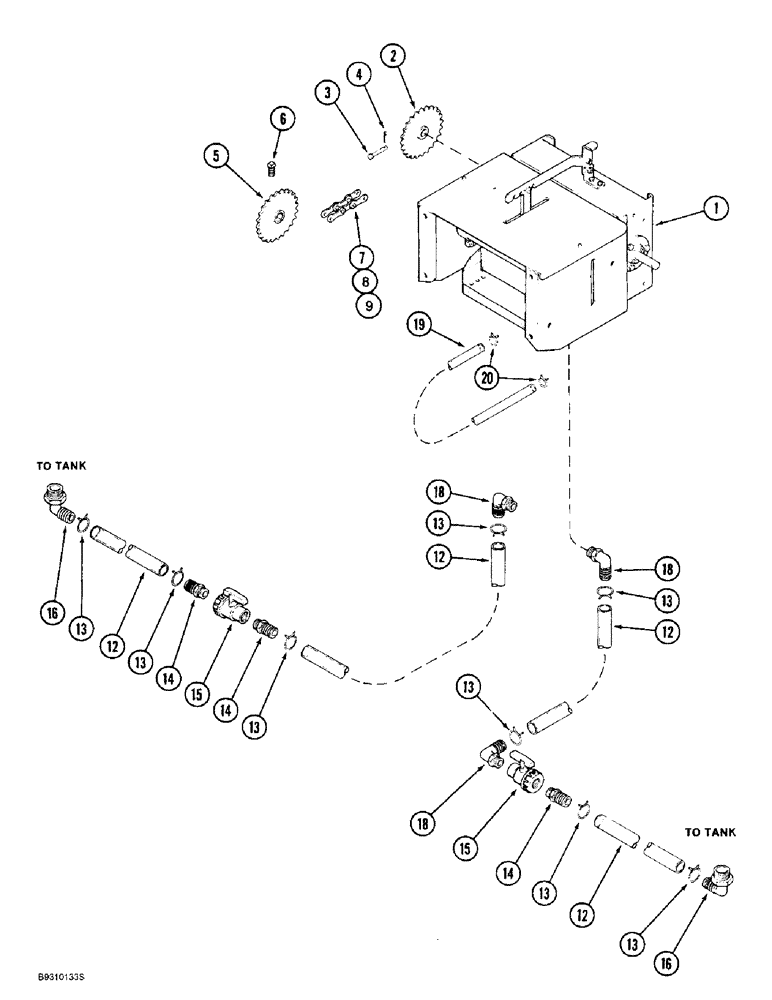

Запчасти Case IH 955 (9F-002) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM, AND SECONDARY DRIVE (09) - CHASSIS/ATTACHMENTS

1

1250764C93

PUMP

ASSEMBLY - squeeze, parts list pages 9F-11 and 9F-13

1шт.

2

1250746C1

SPROCKET

- drive, 24 teeth

1шт.

2

1254149C1

SPROCKET

- drive, 21 teeth

1шт.

2

1254150C1

SPROCKET

- drive, 30 teeth

1шт.

3

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

2шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

5

1254152C2

SPROCKET

- driver, 30 teeth

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

7

149569C3

CHAIN (AG)

CHAIN - drive, use 99 links of 569088R91 bulk chain, (1) 1277927C91 connecting link and (1) 457114R91 offset link, see below

1шт.

When using the extension bar attachment for the No-Till fertilizer openers, use an additional 19 links of 569088R91 chain and one additional 1277927C91 connecting link.

1шт.

8

1277927C91

LINK

- connecting

1шт.

9

242-178

LINK,25.4mm Pitch

LINK - offset, double pitch, No. 2040

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - transparent, 1 ID x 168 inch, cut from 134329C1, see below

1шт.

13

214-1320

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - spring type, 1-1/4 inch

1шт.

14

134270C1

FITTING

- straight, special

3шт.

15

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - shutoff

2шт.

16

1261310C1

ELBOW

- 90 degree, special

2шт.

18

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT, special

3шт.

19

NSS

NOT SOLD SEPARAT

HOSE - transparent, 1/2 ID x 900 inch, cut from 134331C1, see below

1шт.

20

214-1313

HOSE CLAMP,#13, 13/16", Spring

CLAMP - spring type, 13/16 inch

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

134329C1

HOSE

- bulk, transparent, 25 (1) ID x 1270 mm (50 inch) long

1шт.

134331C1

HOSE

- bulk, transparent, 13 (1/2) ID x 30480 mm (1200 inch) long

1шт.
