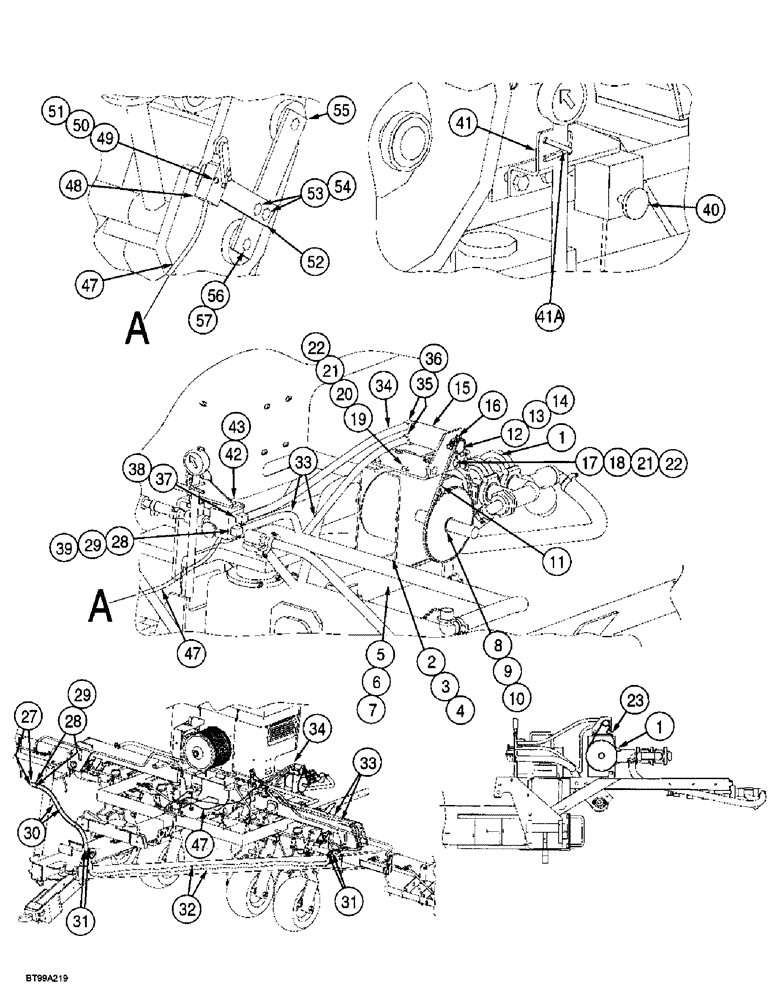

Запчасти Case IH 955 (9F-016) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP MOUNTING AND (09) - CHASSIS/ATTACHMENTS

1

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

3

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

245353A1

SUPPORT

BRACKET - mounting, piston pump

1шт.

6

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

7

425-1010

NUT,5/8"-11, G5

2шт.

8

293573A1

SPROCKET ASSY.

SPROCKET - 45 tooth, pump, at pump shaft

1шт.

9

Y24430

KEY,1/4" Sq x 1 1/2", Par

- square parallel, 1/4 x 1-1/2 inch

1шт.

10

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.

11

236600A1

CHAIN (AG)

CHAIN - roller, use 61 links from 1790D bulk chain and (1) 241-1314 connecting link and (1) 241-1714 offset link, drive to pump, see below

1шт.

12

232893A1

SPROCKET

- drive (10 tooth), at motor

1шт.

13

475642R1

KEY,3/16" Sq x 11/16", Par

- 3/16 square x 11/16 inch long

1шт.

14

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.

15

284797A1

MOTOR

- meter drive

1шт.

15

284797A1R

REMAN-HYD MOTOR

955 CASE IH TRAILING PLANTER, meter drive (10/95-)

1шт.

15

284797A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

16

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT - hex socket, 1/4 NF x 3/4 inch

3шт.

17

304618A1

BRACKET

- motor mount

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

19

282035A1

BRACKET

- liquid fertilizer, pump mounting

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

21

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

22

425-106

NUT,3/8"-16, Cl 5

6шт.

23

295034A1

BRACKET

- tool storage

1шт.

24

225441A1

TOOL

- special, piston pump adjustment, not shown

1шт.

25

226947A1

INSTRUCTION

CHART - pump rate, not shown

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

1шт.

27

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

28

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

3шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

1284366C1

HYDRAULIC HOSE

HOSE - 2540 mm (100 inch) long, supply and return, front

2шт.

31

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare

4шт.

32

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

Supply and Return, Intermediate 12.70 mm ID x 4318.00 mm, SAE 100 R1

2шт.

33

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

HOSE - 3810 mm (150 inch) long, supply and return, rear

2шт.

34

A51522

HYDRAULIC HOSE

HOSE - 610 mm (24 inch) long, Serial Range: motor-valve

1шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

37

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

39

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

40

276035A1

VALVE

- flow control

1шт.

41

311794A1

BRACKET

- mounting, valve

1шт.

41a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

45

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

46

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

47

313438A1

HARNESS

- control, Serial Range: valve-switch

1шт.

48

1265625C92

SWITCH

- status, at drive wheel frame

1шт.

49

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

- machine, pan Phillips, No. 10 NC x 1-1/4 inch

2шт.

50

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

51

225-14110

NUT,#10-24

2шт.

52

294805A2

PLATE

- adjustment, implement status switch

1шт.

53

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

55

294803A2

PLATE

- adjustment, implement status switch

1шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
