(9F-022) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER

Запчасти Case IH 955 (9F-022) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER (09) - CHASSIS/ATTACHMENTS

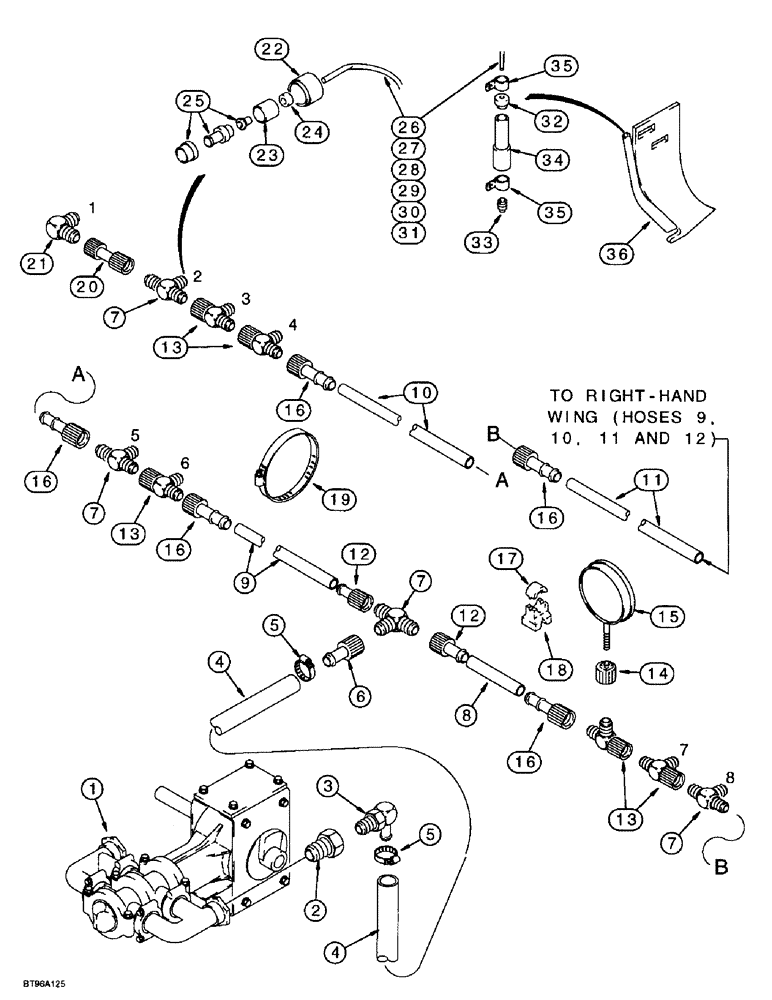

Схема запчастей Case IH 955 - (9F-022) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER (09) - CHASSIS/ATTACHMENTS
1
31
23
19
16
11
18
7
16
32
13
36
2
4
29
26
20
8
25
30
16
33
15
9
12
5
13
16
14
10
22
7
27
13
21
6
4
12
3
28
24
7
16
17
34
5
7
35
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer

1шт.

2

225463A2

FITTING

- reducer, special

1шт.

3

231418A1

ELBOW

- 90 degree, hose barb, special

1шт.

4

225456A1

HOSE,1.00" ID x 28.00"

- 700 mm (28 inch) long, cut from 134329C1 bulk hose

1шт.

5

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, #16, 0.81/1.50 Type F Worm

2шт.

6

225457A1

NUT

ADAPTER - straight, hose barb, special

1шт.

7

225458A1

TEE

- male, special

1шт.

8

225461A1

HOSE,17.53 mm ID x 110.00 mm

- 110 mm (4-3/8 inch) long, cut from 229589A1 bulk hose

1шт.

9

225460A1

HOSE,17.53 mm ID x 250.00 mm

- 250 mm (9-7/8 inch) long, cut from 229589A1 bulk hose

1шт.

10

225475A1

HOSE,17.53 mm ID x 3800.00 mm

- 3800 mm (148-5/8 inch) long, cut from 229589A1 bulk hose

1шт.

11

225474A1

HOSE,17.53 mm ID x 3700.00 mm

- 3700 mm (145-11/16 inch) long, cut from 229589A1 bulk hose

1шт.

12

225459A1

NUT

ADAPTER - hose barb, special

2шт.

13

225468A1

TEE

- female x male, special

11шт.

14

225467A1

NUT

ADAPTER - reducer, female, special, pressure gauge

1шт.

15

225466A1

GAUGE

- pressure, pump

1шт.

16

225471A1

ADAPTER

- female, hose barb, special

6шт.

17

225464A1

CAP

- mounting block

8шт.

18

225465A1

BLOCK

- mounting, tube

8шт.

19

225462A1

CLAMP

- gear, special, mounting block

8шт.

20

225473A1

COUPLING

ADAPTER - female, special mounting, 3-1/2 inch long

2шт.

21

225472A1

ELBOW

- male, 90 degree, special

2шт.

22

225469A1

NUT

- hose sleeve, special

12шт.

23

225479A1

SLEEVE

- orfice, special

12шт.

24

225470A1

NUT

- orfice valve body, special

12шт.

25

225478A1

BODY

- check valve, with screen

12шт.

26

228293A1

HOSE

- 1000 mm (39-3/8 inch) long, cut from 225480A1 bulk hose, see below, used at rows 6, 7 and 10

3шт.

27

228295A1

LARGE HOSE

HOSE - 1300 mm (51-3/16 inch) long, cut from 225480A1 bulk hose, see below, used at rows 2, 3 and 11

3шт.

28

228296A1

HOSE

- 1500 mm (59-1/16 inch) long, cut from 225480A1 bulk hose, see below, used at row 8

1шт.

29

228297A1

HOSE

- 1700 mm (66-15/16 inch) long, cut from 225480A1 bulk hose, see below, used at rows 5 and 9

2шт.

30

228298A1

HOSE

- 1800 mm (70-7/8 inch) long, cut from 225480A1 bulk hose, see below, used at row 4

1шт.

31

228299A1

LARGE HOSE

HOSE - 2200 mm (86-5/8 inch) long, cut from 225480A1 bulk hose, see below, used at rows 1 and 12

2шт.

32

225476A1

HOLDER

CAP - hose retainer, red identification, 3/8 inch

12шт.

33

225477A1

RESTRICTOR

- line, yellow identification, 0.06 inch

12шт.

34

227682A1

HOSE,0.50" ID x 24.00"

- 610 mm (24 inch) long, cut from 134331C1 bulk hose, see below

12шт.

35

230561A1

CLAMP

- P-type, 1/2 inch ID, hose

24шт.

36

1344517C2

KNIFE

- liquid fertilizer, see pages 9F-87 and 9F-91 for coulter and mounting parts

12шт.

134329C1

HOSE

- bulk, transparent, 25 (1) ID x 1270 mm (50 inch) long

1шт.

229589A1

HOSE

- bulk, blue, 17 (11/16) ID x 7925 mm (312 inch) long

1шт.

225480A1

HOSE

- bulk, blue, 5 (3/16) ID x 36576 mm (1440 inch) long

1шт.

134331C1

HOSE

- bulk, transparent, 13 (1/2) ID x 30480 mm (1200 inch) long

1шт.
