(9F-024) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER

Запчасти Case IH 955 (9F-024) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER (09) - CHASSIS/ATTACHMENTS

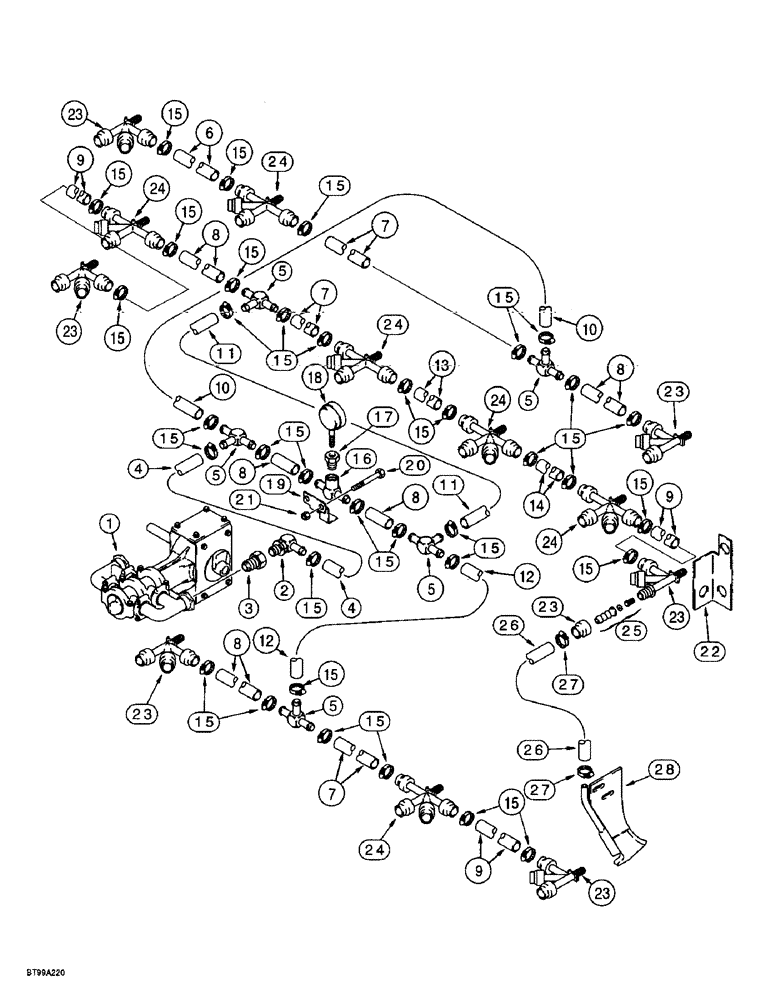

Схема запчастей Case IH 955 - (9F-024) - LIQUID FERTILIZER PISTON PUMP SYSTEM, PUMP TO FERTILIZER (09) - CHASSIS/ATTACHMENTS
15
5
26
15
11
24
23
20
24
15
27
11
16
23
24
8
27
6
8
5
14
15
8
5
9
15
12
15
1
9
22
7
5
4
4
15
15
2
18
15
12
23
23
15
7
15
3
24
23
15
15
7
23
25
13
15
15
21
24
15
15
24
26
15
10
19
17
23
5
15
10
8
9
15
8
15
28
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer

1шт.

2

241916A1

FITTING

ELBOW - 90 degree, hose barb, special

1шт.

3

1264071C2

FITTING

REDUCER - hex, special

1шт.

4

REF

INSTRUCTION

HOSE - 815 mm (32-1/8 inch) long, cut from 241923A1 bulk hose, see below

1шт.

5

241919A1

FITTING

TEE - male, hose barb

5шт.

6

REF

INSTRUCTION

HOSE - 750 mm (29-1/2 inch) long, cut from 241923A1 bulk hose, see below

1шт.

7

REF

INSTRUCTION

HOSE - 520 mm (20-1/2 inch) long, cut from 241923A1 bulk hose, see below

3шт.

8

REF

INSTRUCTION

HOSE - 80 mm (3-3/16 inch) long, cut from 241923A1 bulk hose, see below

5шт.

9

REF

INSTRUCTION

HOSE - 990 mm (39 inch) long, cut from 241923A1 bulk hose, see below

3шт.

10

REF

INSTRUCTION

HOSE - 3025 mm (119-1/8 inch) long, cut from 241923A1 bulk hose, see below

1шт.

11

REF

INSTRUCTION

HOSE - 610 mm (24-1/16 inch) long, cut from 241923A1 bulk hose, see below

1шт.

12

REF

INSTRUCTION

HOSE - 3760 mm (148 inch) long, cut from 241923A1 bulk hose, see below

1шт.

13

REF

INSTRUCTION

HOSE - 720 mm (28-3/8 inch) long, cut from 241923A1 bulk hose, see below

1шт.

14

REF

INSTRUCTION

HOSE - 840 mm (33 inch) long, cut from 241923A1 bulk hose, see below

1шт.

15

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

26шт.

16

241917A1

FITTING

TEE - female x male hose barb

1шт.

17

241918A1

FITTING

ADAPTER - reducer, special, pressure gauge

1шт.

18

225466A1

GAUGE

- pressure, pump

1шт.

19

256300A1

BRACKET

- mounting, pressure gauge

1шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

241016A1

BRACKET

- mounting, nozzle check valve

12шт.

23

241019A1

NOZZLE

- elbow, check valve

6шт.

24

241017A1

NOZZLE

- tee, check valve

6шт.

25

242564A2

KIT

FITTING - nozzle, includes screen and orifice

12шт.

26

REF

INSTRUCTION

HOSE - 813 mm (32 inch) long, cut from 134331C1 bulk hose, see below

12шт.

27

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

24шт.

28

1344517C2

KNIFE

- liquid fertilizer, see pages 9F-87 and 9F-91 for coulter and mounting parts

12шт.

86993466

HOSE,0.75" ID

241923A1 Sold by the Foot 0.75" ID

1шт.

134331C1

HOSE

- bulk, transparent, 13 (1/2) ID x 30480 mm (1200 inch) long

1шт.
