(9F-098) - FERTILIZER APPLICATOR MOUNTING BAR, 12/23 SOLID ROW CROP -

Запчасти Case IH 955 (9F-098) - FERTILIZER APPLICATOR MOUNTING BAR, 12/23 SOLID ROW CROP - (09) - CHASSIS/ATTACHMENTS

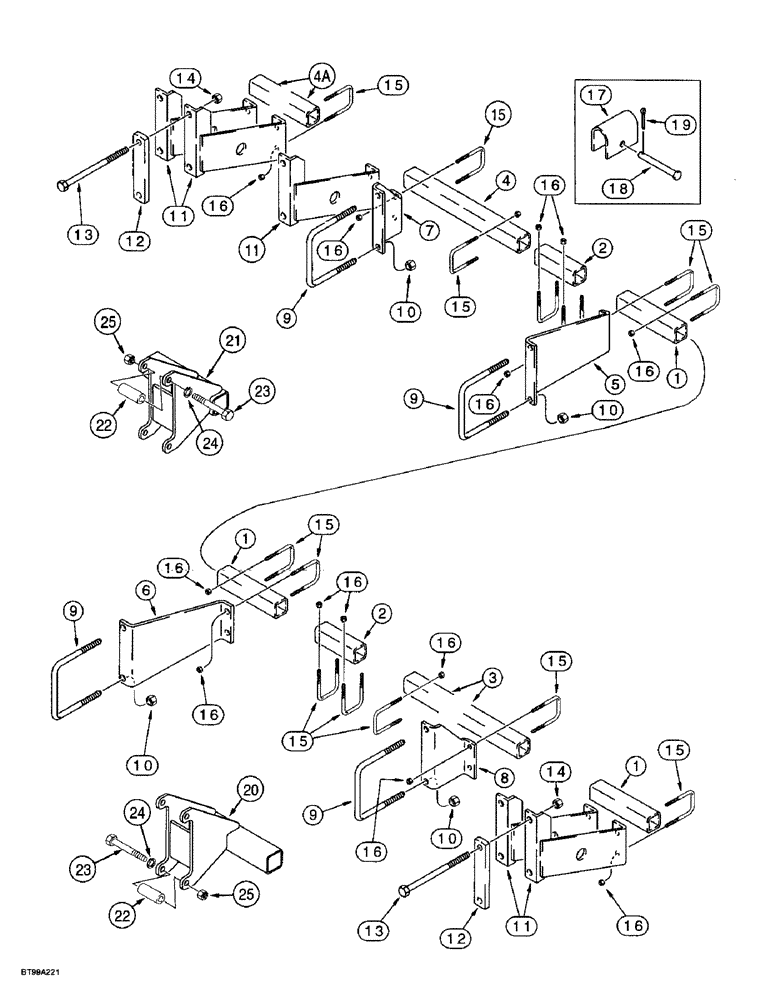

Схема запчастей Case IH 955 - (9F-098) - FERTILIZER APPLICATOR MOUNTING BAR, 12/23 SOLID ROW CROP - (09) - CHASSIS/ATTACHMENTS
12
11
10
23
15
1
10
13
8
11
16
4
13
9
10
17
25
3
16
11
24
15
16
4a
15
24
16
7
6
14
16
12
2
9
5
19
14
15
9
9
15
21
15
16
22
16
20
16
22
1
15
1
10
16
16
16
25
15
2
18
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

258417A1

TUBE,405 mm Length

BAR - applicator mounting, 410 mm (16-3/16 inch) long, inner center main frame, outer right-hand wing frame

3шт.

2

258414A1

TUBE,245 mm Length

BAR - applicator mounting, 245 mm (9-5/8 inch) long, outer center main frame

2шт.

3

1284409C1

TUBE

BAR - applicator mounting, 1180 mm (46-1/2 inch) long, inner right-hand wing frame

1шт.

4

1284485C1

TUBE,785 mm Length

BAR - applicator mounting, 785 mm (30-15/16 inch) long, inner left-hand wing frame

1шт.

4a

314323A1

TUBE,965 mm Length

2.5 SQ X 965MM

1шт.

5

113666A1

BAR

BRACKET - fertilizer bar, left-hand, center main frame

1шт.

6

113667A1

BAR

BRACKET - fertilizer bar, right-hand, center main frame

1шт.

7

193204A1

BRACKET

- fertilizer bar, left-hand, inner, wing frame

1шт.

8

193205A1

BRACKET

- fertilizer bar, right-hand, inner, wing frame

1шт.

9

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

4шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

252419A1

BRACKET

- mounting, fertilizer bar, outer, right-hand and left wing frames

5шт.

12

252420A1

STRAP

- retaining, Serial Range: bracket-bar

5шт.

13

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

10шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

10шт.

15

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch

17шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

34шт.

17

252449A1

STOP

- lockup, wing wheel cylinder, used with liquid fertilizer attachment

2шт.

18

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch, grade 2

2шт.

19

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

20

295638A1

BRACKET

- mounting, right-hand main frame

1шт.

21

295637A1

BRACKET

- mounting, left-hand main frame

1шт.

22

311709A1

SPACER

-, Serial Range: bracket-frame

4шт.

23

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

425-1010

NUT,5/8"-11, G5

4шт.
