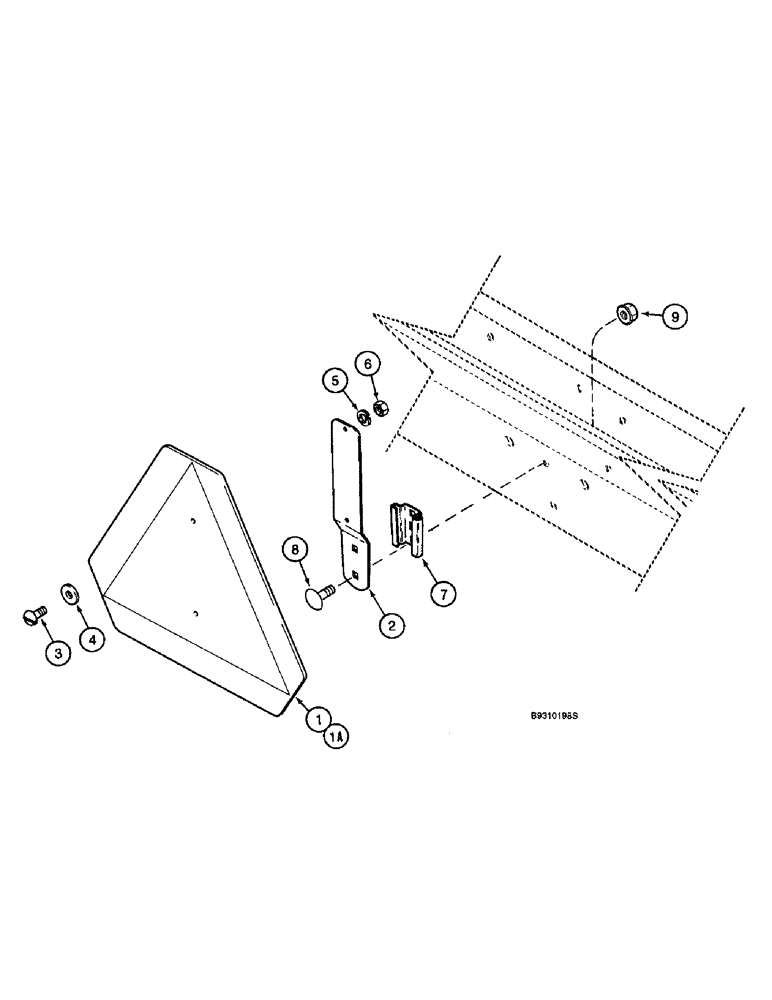

Запчасти Case IH 955 (9F-110) - SMV EMBLEM, ALL RIGID, VERTICAL FOLD AND FRONT FOLD PLANTERS (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

1a

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV emblem

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

- mounting (Not used on front fold Planters)

1шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
