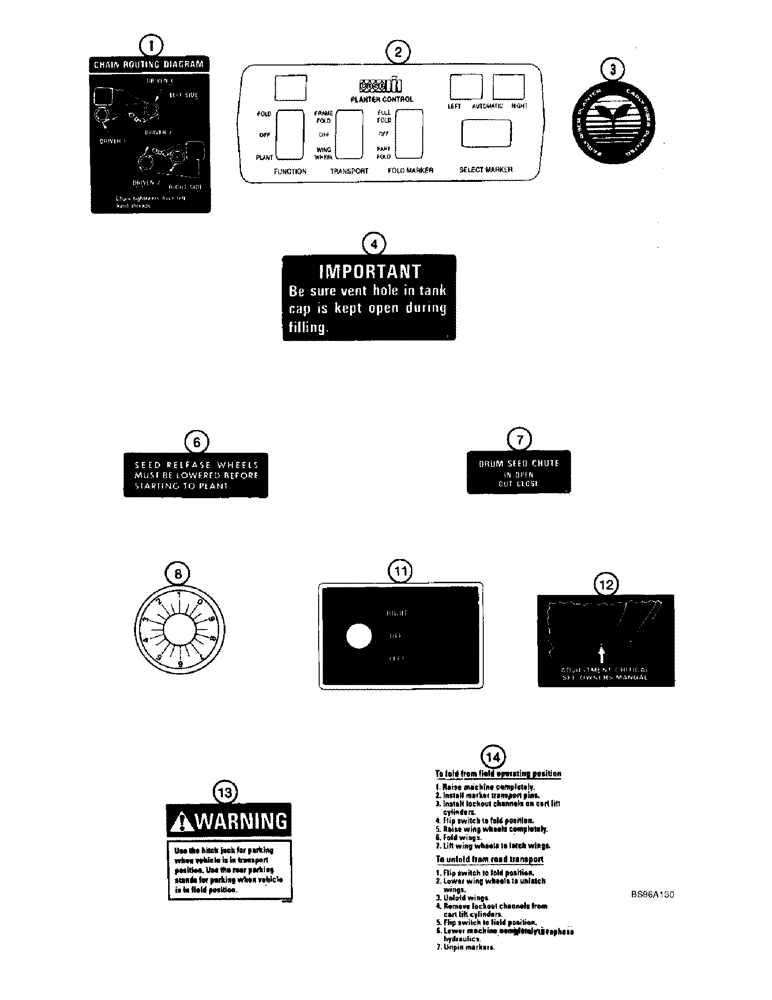

Запчасти Case IH 955 (9F-116) - DECALS, ALL RIGID, VERTICAL FOLD, FRONT FOLD AND PARALLEL (09) - CHASSIS/ATTACHMENTS

1

1254231C1

PRODUCT GRAPHIC

DECAL - chain routing diagram, rigid, vertical fold and parallel front fold

1шт.

1a

118564A1

DECAL

- chain routing diagram, front fold, not shown (See item 5, page 9F-121)

1шт.

2

116823A2

DECAL

- face plate, planter control, front fold

1шт.

2a

116909A1

DECAL

- operating instructions, front fold, not shown (See item 5, page 4-19)

1шт.

3

95769C1

DECAL

- Early Riser Planter, knob insert

1шт.

4

1254278C1

PRODUCT GRAPHIC,Important Be sure vent hole in tank cap is kept open during fill

DECAL - Important, be sure vent hole in tank

1шт.

6

549073R1

DECAL

- seed release wheels must be lowered (English)

2шт.

6

854098C1

DECAL

- seed release wheels must be lowered (French) (Not shown)

2шт.

7

141213C1

DECAL

- drum seed chute (English)

1шт.

7

80095C1

DECAL

- drum seed chute (French) (Not shown)

1шт.

8

134294C1

DIAL

INDICATOR - dial handle disc

2шт.

11

147218C1

DECAL,Control Right Off Left

- right, off, left (Rigid and Vertical Fold)

1шт.

12

1986496C1

DECAL

- adjustment critical, No-Til fertilizer opener

1шт.

13

1986468C1

DECAL

- Warning, use the hitch jack for parking, parallel front fold planter only

1шт.

14

1995594C2

DECAL

- instruction, fold/unfold, parallel front fold planter only

1шт.
