(B-11) - SPEED CHANGE ATTACHMENT (1962 & SINCE)

Запчасти Case IH 185 (B-11) - SPEED CHANGE ATTACHMENT (1962 & SINCE)

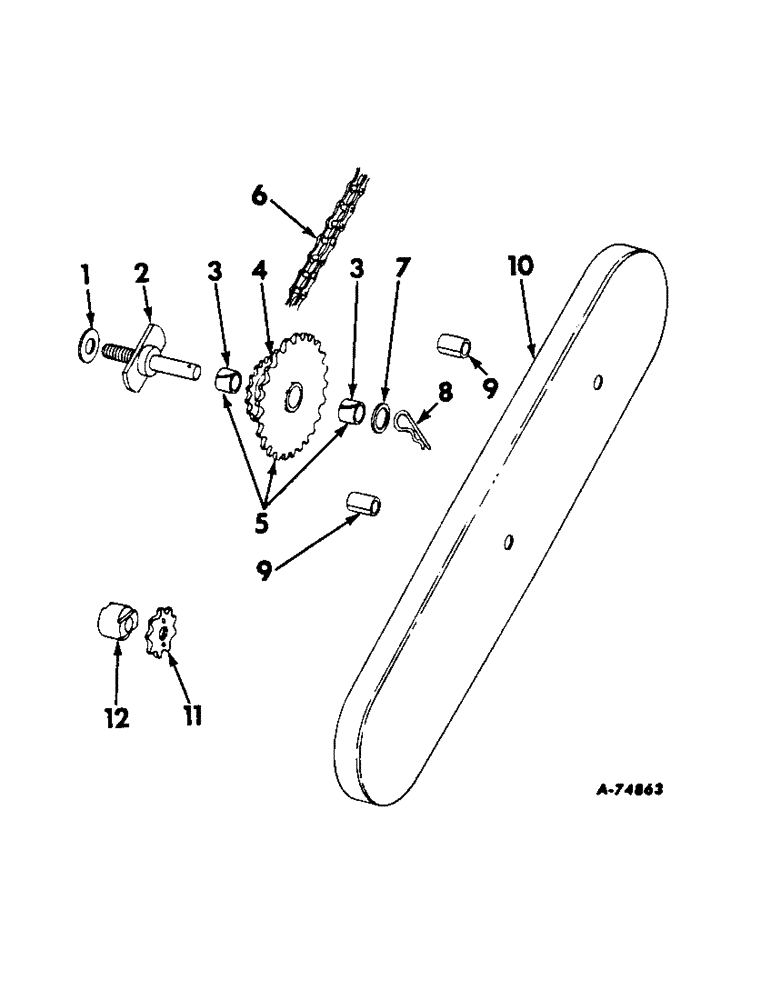

Схема запчастей Case IH 185 - (B-11) - SPEED CHANGE ATTACHMENT (1962 & SINCE)
10
1
4
2
7
11
3
9
8
12
3
6
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

2

471437R21

SHAFT ASSY, idler

1шт.

NUT, 1/2 C-Z

1шт.

WASHER, 1/2 C-Z med lock

1шт.

3

363766R1

BUSHING

sprocket

2шт.

4

ORDER 471440R91

1шт.

5

471440R91

SPROCKET W/BUSHINGS, double

1шт.

6

471446R91

CHAIN, roller, special spacing, 11 in. long, composed of (18) link, roller 524790R91, (4) link, connecting 524791R91

1шт.

7

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

8

585614R1

PIN

quick-attachable cotter

1шт.

9

625208R1

BUSHING, housing cover

2шт.

10

471445R1

COVER, drive housing

1шт.

SCREW, 3/8 x 1-3/8 C-Z cap

2шт.

WASHER, 3/8 C-Z med lock

2шт.

11

471435R11

SPROCKET ASSY.

SPROCKET, 9T

1шт.

12

471433R1

HUB, short rear drive extension

1шт.

12

471434R1

HUB, large rear drive extension

1шт.

SCREW, 1/2 x 3/4 C-Z cap

1шт.

SCREW, 1/2 x 1-3/8 C-Z cap

1шт.

WASHER, 1/2 C-Z med lock

2шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

2шт.
