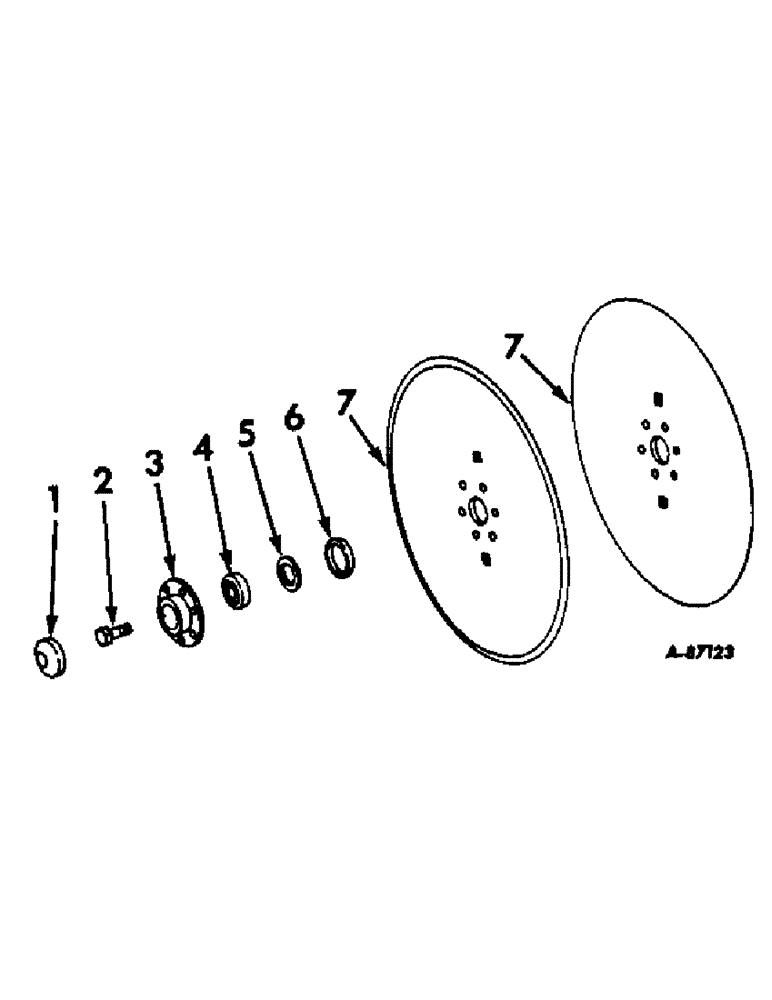

Запчасти Case IH 185 (B-05) - DOUBLE DISK OPENER

1

603012R1

DUST CAP

CAP, bearing housing dirt

2шт.

2

524673R1

BOLT,5/8" - 11 x 1 1/8", LH Thd

disk bearing, LH thd, Serial Range: 1958-1964

1шт.

2

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk bearing, LH thd, 1965 and since

1шт.

2

524674R1

BOLT,5/8" - 11 x 1 1/8", RH Thd

disk bearing, RH thd, Serial Range: 1958-1964

1шт.

2

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk bearing, RH thd, 1965 and since

1шт.

3

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 rd-hd

12шт.

4

133214R91

BEARING LOCK NUT

BEARING ASSY, disk ball, 1958 to 1964, order 479838R91, 479844R1, 479845R1, 464481 or 464482R1

2шт.

4

479838R91

BALL BEARING,17mm ID x 40mm OD x 16.6mm W

ASSY, disk ball, 1965 and since

2шт.

5

524675R1

WASHER

spacer, Serial Range: 1958-1964

2шт.

5

479844R1

WASHER

spacer, 1965 and since

2шт.

6

479845R1

WASHER

bearing

2шт.

7

524676R1

DISK HARROW

DISK, opener, 12-1/2 dia.

2шт.

481045R91

DISC

DISK AND BEARING ASSY, 1965 and since, consists of the following items (1) disk 524676R1, (1) washer 479844R1, (1) washer 479845R1, (1) bearing 479838R91, (1) housing 602989R1, (6) rivets 104081

2шт.
