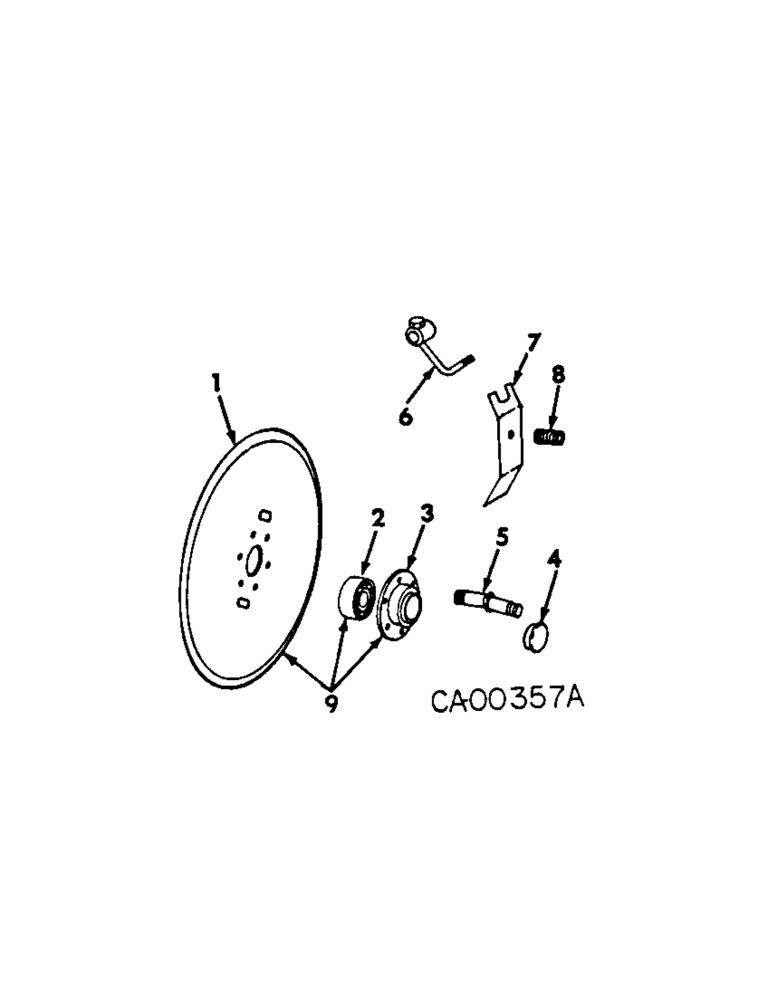

Запчасти Case IH 295 (Z-06) - DISK OPENER AND SCRAPER, QUANTITIES SHOWN ARE PER ROW

1

492756R1

DISC

DISK, 13-1/2 in.

2шт.

2

492757R91

BALL BEARING

ball

2шт.

2

492757R91GV

BEARING

Value, Ball Bearing

2шт.

3

492710R1

RETAINER

FLANGE, brg

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 pln but/hd sol

12шт.

4

492709R1

CAP

brg housing

2шт.

5

492750R1

BOLT,5/8" - 11

double disk tie

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga (or as required)

3шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8-11 C-Z hex. jam LH THD

1шт.

6

493111R1

SPACER

ASSY, left

2шт.

6

493112R1

SPACER

ASSY, right

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

4шт.

120376

NUT,5/16"-18, G5

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

8шт.

7

471240R1

SUPPORT

SCRAPER

4шт.

8

6633

SPRING

4шт.

9

141464C91

DISC

DISK ASSY, 13-1/2 in., includes ref. nos. 1, 2 and 3

2шт.
