(Z-14) - SEED FLOW MONITOR EQUIPMENT

Запчасти Case IH 295 (Z-14) - SEED FLOW MONITOR EQUIPMENT

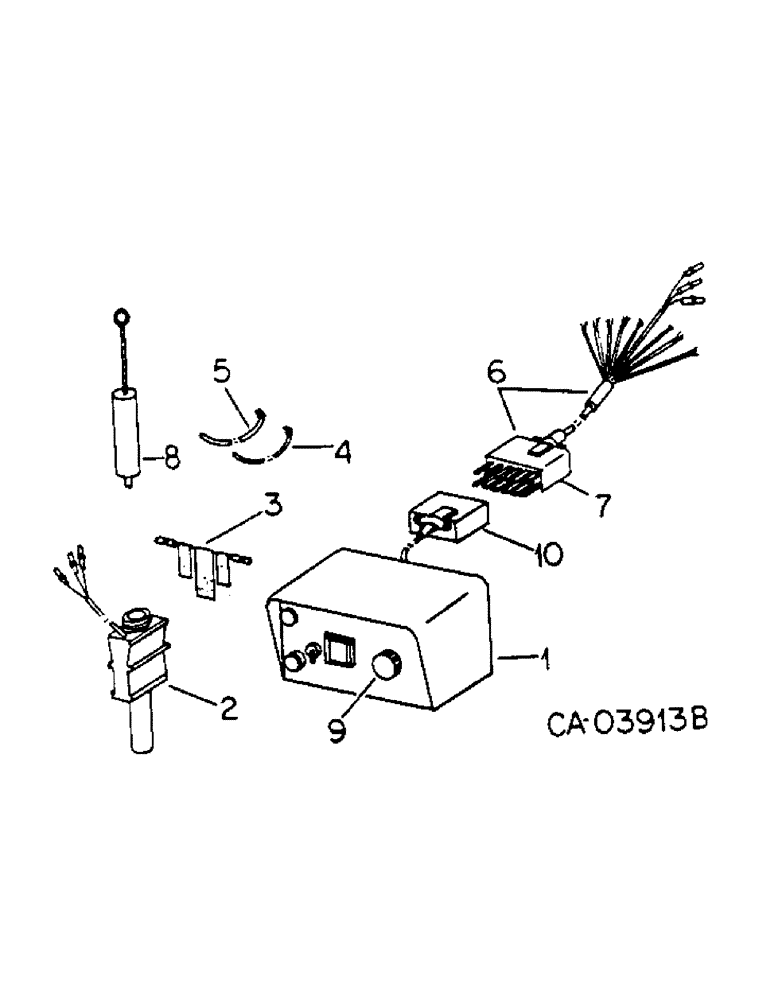

Схема запчастей Case IH 295 - (Z-14) - SEED FLOW MONITOR EQUIPMENT
3
10
1
2
9
7
6
7
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R60709C1

PANEL

CONSOLE ASSY, seed flow monitor, renewed, only serviceable items are fuse, 106652, female socket, 128814C1 and buzzer, 128816C1

1шт.

106652

FUSE,3 Amp, Type 3AG

type 3AG, 3 ampere

1шт.

2

60855C1

BOOT

SENSOR, large seed, used w/seed tube 56515C1

1шт.

2

60856C1

SENSOR, small seed, used w/seed tube 493110R2

1шт.

2

141220C91

GAUGE

SENSOR, large seed and peanut, used w/seed tube 125646C2

1шт.

3

58557C1

ELECTRICAL WIRE

WIRE SHORTENING

1шт.

4

58555C1

FASTENER

TIE WRAP, 7 in.

1шт.

5

58556C1

CABLE TIE

TIE WRAP, 14 in.

1шт.

6

57684C91

HARNESS

ASSY, planter, 4 row

1шт.

6

57685C91

HARNESS

ASSY, planter, 6 row

1шт.

6

57686C91

HARNESS

ASSY, planter, 8 row

1шт.

7

128813C1

CONNECTOR,ELECTRIC

PLUG, male connector socket

1шт.

8

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

9

128816C1

BUZZER

sonalert

1шт.

10

128814C1

SOCKET

female connector

1шт.
