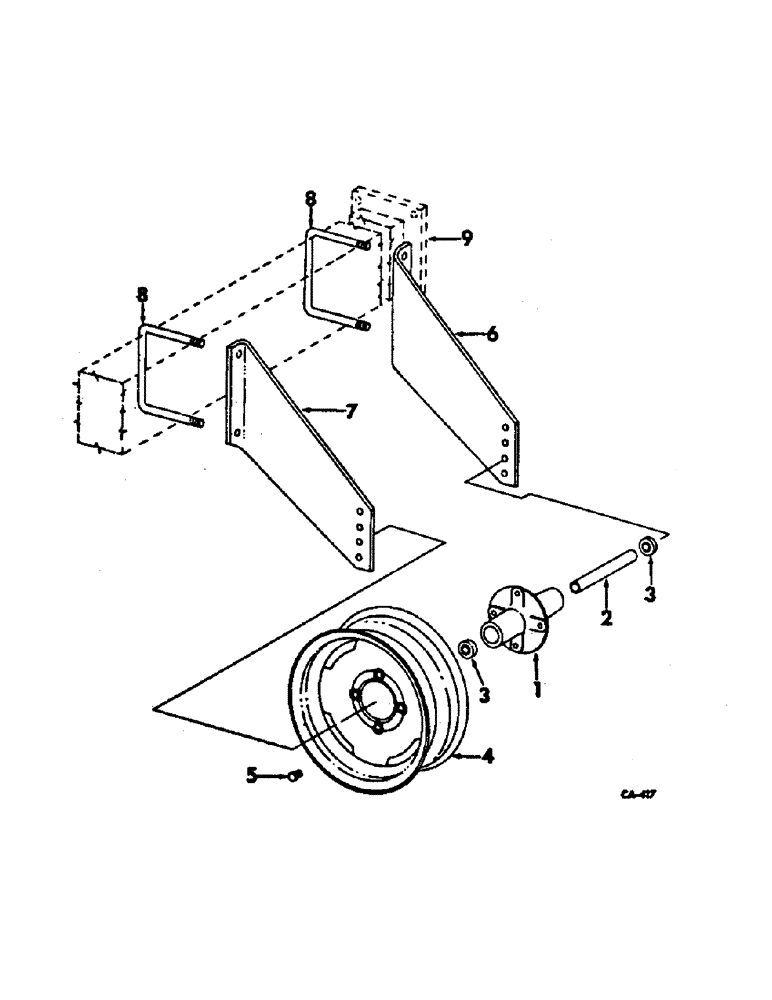

Запчасти Case IH 300 (AG-07) - TOOL BAR CARRYING WHEELS

1

465418R2

HUB

wheel

2шт.

2

465423R1

PIPE

SPACER, pipe

2шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

roller

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in.

2шт.

5

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

wheel

8шт.

453770R1

WHEEL NUT

1/2-20 wheel hub std.

1шт.

6

493935R1

ARM, wheel LH

2шт.

7

493936R1

ARM

wheel RH

2шт.

8

492942R2

U-BOLT

wheel arm 5/8 in.

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

9

TUBE ASSY, main frame, refer to tool bar frame unit

1шт.
