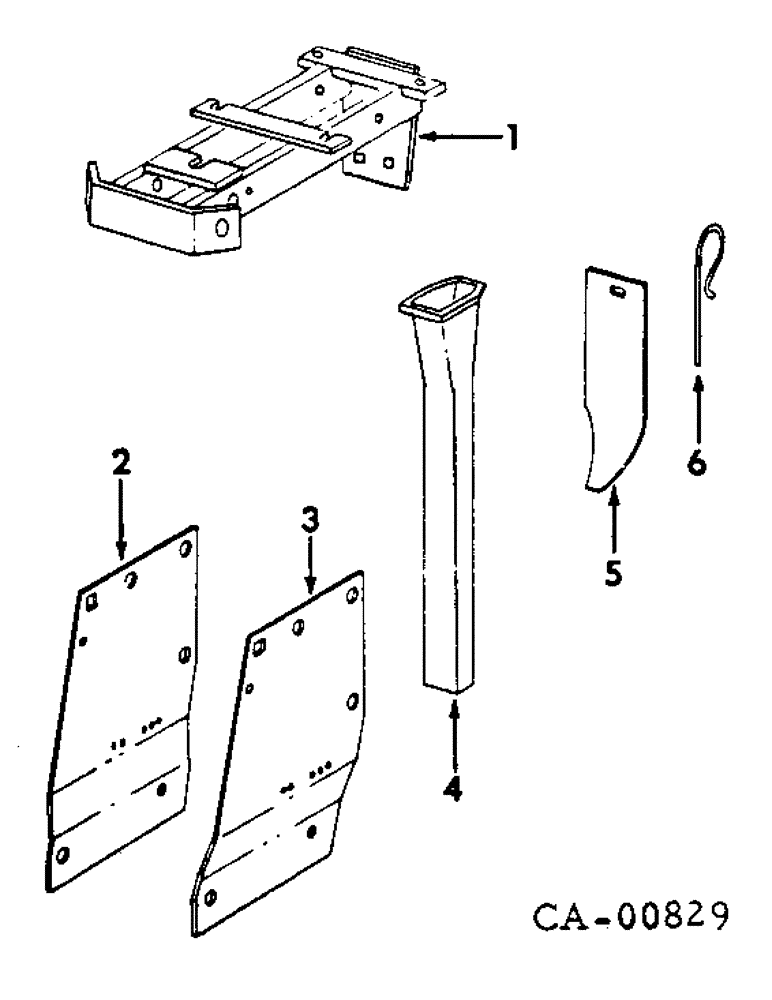

Запчасти Case IH 386 (AF-15) - HEAVY DUTY STUBBLE MULCH, DRILL UNIT, QUANTITIES SHOWN ARE PER ROW

1

541870R4

FRAME

ASSY, unit

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

546985R1

SHEET

rail side LH

1шт.

3

546986R1

SHEET

rail side RH

1шт.

4

541876R1

TUBE

drill seed

1шт.

134060C1

ADAPTER

seed tube

1шт.

22262R1

PIN, 1/8 x 2-3/4 C-Z cot.

1шт.

5

546984R1

COVER, valve front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

471207R1

PIN

quick attachable cot.

1шт.
