(YB-08) - LIQUID FERTILIZER FLOW CONTROL VALVE, QUANTITIES SHOWN ARE PER ROW

Запчасти Case IH 400 (YB-08) - LIQUID FERTILIZER FLOW CONTROL VALVE, QUANTITIES SHOWN ARE PER ROW

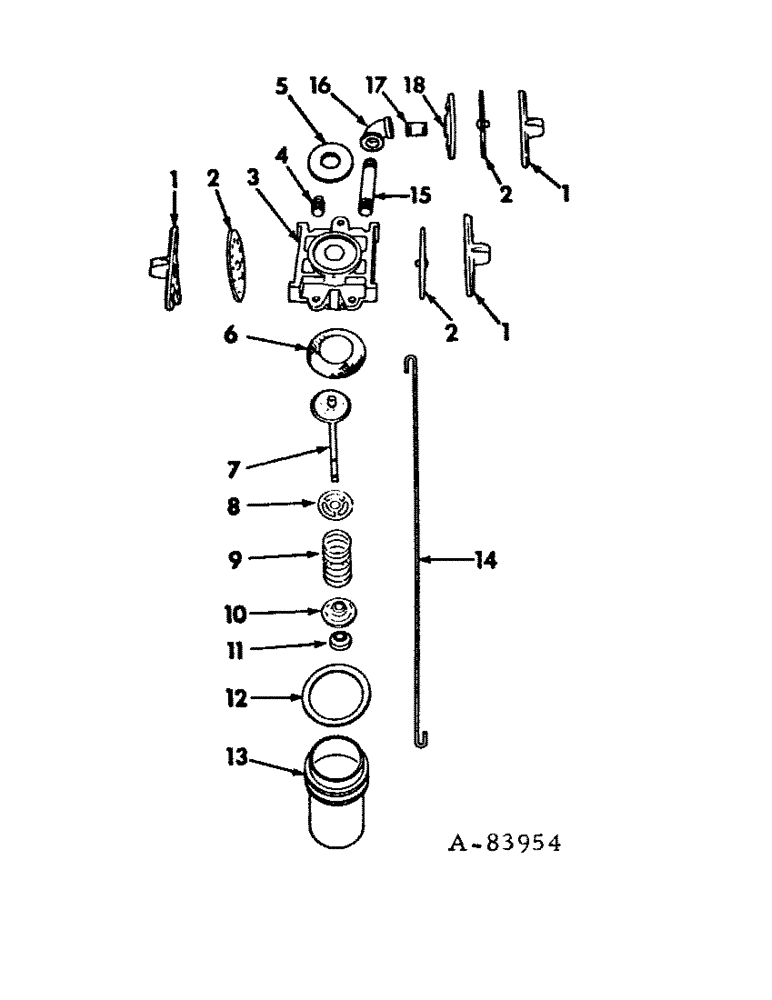

Схема запчастей Case IH 400 - (YB-08) - LIQUID FERTILIZER FLOW CONTROL VALVE, QUANTITIES SHOWN ARE PER ROW
7
10
9
17
2
4
1
14
2
3
1
6
2
13
12
18
11
15
16
5
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

626230R1

HEAD, flow control

1шт.

18877R1

BOLT

1/4 x 1-1/4 znd sq-hd mach

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 C-Z wing

2шт.

2

626233R1

DISC, metering valve

2шт.

3

474702R1

HOUSING, flow control

1шт.

4

1017870R1

PLUG, pipe

1шт.

5

474703R2

WASHER, flow control valve

1шт.

6

478492R1

SCREEN, bowl filter

1шт.

7

474706R91

VALVE ASSY, flow control

1шт.

8

474710R1

GUIDE, valve

1шт.

9

474711R1

SPRING, flow control

1шт.

220257

PIN, SPLIT (COTTER)

PIN, 3/32 x 3/4 stainless-stl cot.

1шт.

10

474705R1

CUP, spring retainer

1шт.

11

474709R1

COLLAR, valve stem

1шт.

12

625861R3

RUBBER WASHER

sediment bowl rubber

1шт.

13

64178D

CONTAINER

JAR, half pint glass mason

1шт.

14

493684R1

ROD, flow control valve

1шт.

15

626339R1

NIPPLE, pipe

1шт.

16

119097

ELBOW,90º, 3/8" NPT

3/8 90 deg pipe

1шт.

17

626369R1

NIPPLE, pipe

1шт.

18

626335R1

ADAPTER, flow control

1шт.
