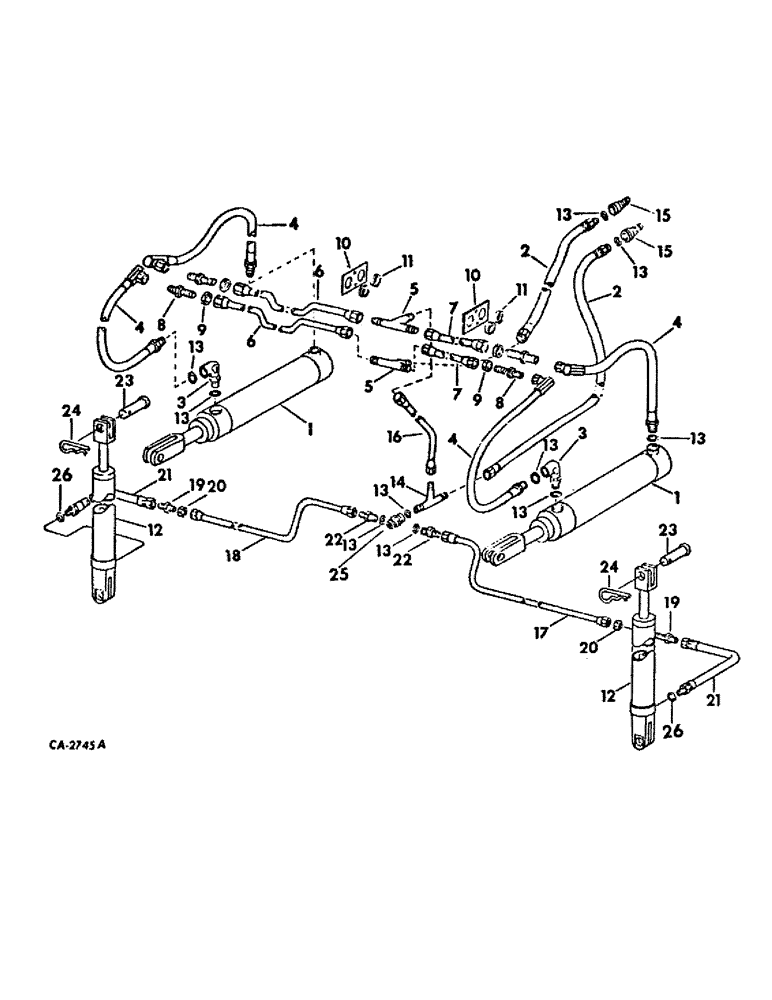

Запчасти Case IH 400 (A-038) - HYDRAULIC CYLINDERS AND CONNECTIONS, FOR 8 ROW

1

381854R93

CYLINDER

ASSY, 3 x 8 in. double acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.

2

546502R2

HYDRAULIC HOSE,0.50" ID x 114.00", SAE 100R1

0.50" ID x 114.00", SAE 100R1

2шт.

3

371357R91

ELBOW

7/8-14 90 deg adjustable

2шт.

4

548740R1

HYDRAULIC HOSE,0.50" ID x 16.00", SAE 100R1

0.50" ID x 16.00", SAE 100R1

4шт.

5

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube

2шт.

6

548737R1

TUBE ASSY, hydraulic, 8 row narrow

2шт.

6

57661C1

TUBE ASSY, hydraulic, 8 row wide

2шт.

7

548738R1

TUBE ASSY, hydraulic, 8 row narrow

2шт.

7

57662C1

TUBE ASSY, hydraulic, 8 row wide

2шт.

8

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 37 deg hyd flared tube bulkhead

4шт.

9

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 bulkhead union lock

4шт.

10

548746R1

SUPPORT, hydraulic tubing

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber

4шт.

12

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

12шт.

14

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-16 hyd 37 deg flared tube adj STR THD 90 deg, 8 row narrow

1шт.

14

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 hyd 37 deg flared tube STR THD 90 deg swivel, 8 row wide

1шт.

15

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male

2шт.

16

548736R1

TUBE ASSY, hydraulic, 8 row narrow

1шт.

16

381170R91

HOSE

ASSY, 1/2 ID x 15-1/2 in. hyd, 8 row wide

1шт.

17

548743R1

HYD TUBE

TUBE ASSY, hydraulic, 8 row narrow

1шт.

17

57672R1

TUBE ASSY, hydraulic, 8 row wide

1шт.

18

548744R1

TUBE ASSY, hydraulic, 8 row narrow

1шт.

18

57673C1

TUBE ASSY, hydraulic, 8 row wide

1шт.

19

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 hyd 37 deg flared tube bulkhead

2шт.

20

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

2шт.

21

548745R1

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R1

0.38" ID x 12.00"

2шт.

22

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

UNION, 3/8 hyd 37 deg flared tube short swivel reducer

2шт.

23

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 std-hd

4шт.

24

520175R1

CLIP

PIN, quick attachable cot.

4шт.

25

493792R2

UNION

VALVE, restrictor, 8 row wide

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.
