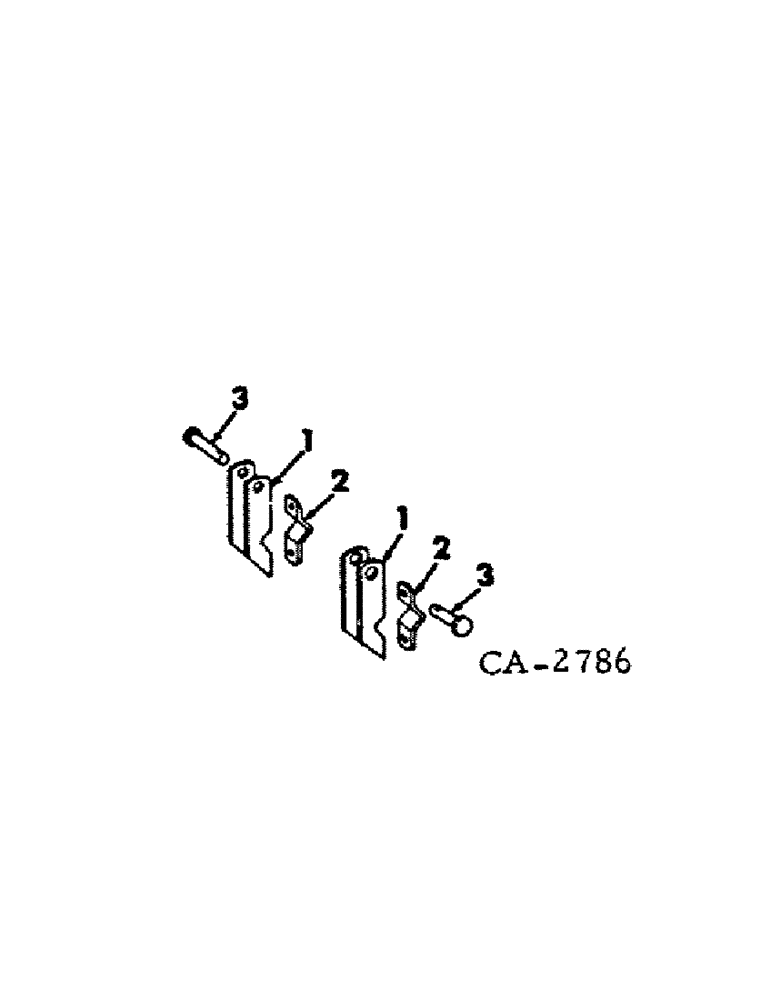

Запчасти Case IH 400 (A-080) - MOUNTING COMPLETING PACKAGE, ADAPT NO. 5 COMBINED TILLAGE HITCH TO 45 MOUNTED VIBRA-SHANK CULTIVATOR

1

480646R91

BRACKET ASSY, mounting

2шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 znd sq-nk crg

4шт.

20760R1

BOLT, 5/8 x 3-3/4 znd sq-nk crg

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

8шт.

2

480650R1

CLAMP, mounting bracket

2шт.

3

22063R1

PIN, 7/8 x 4-1/4 znd std-hd

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.
