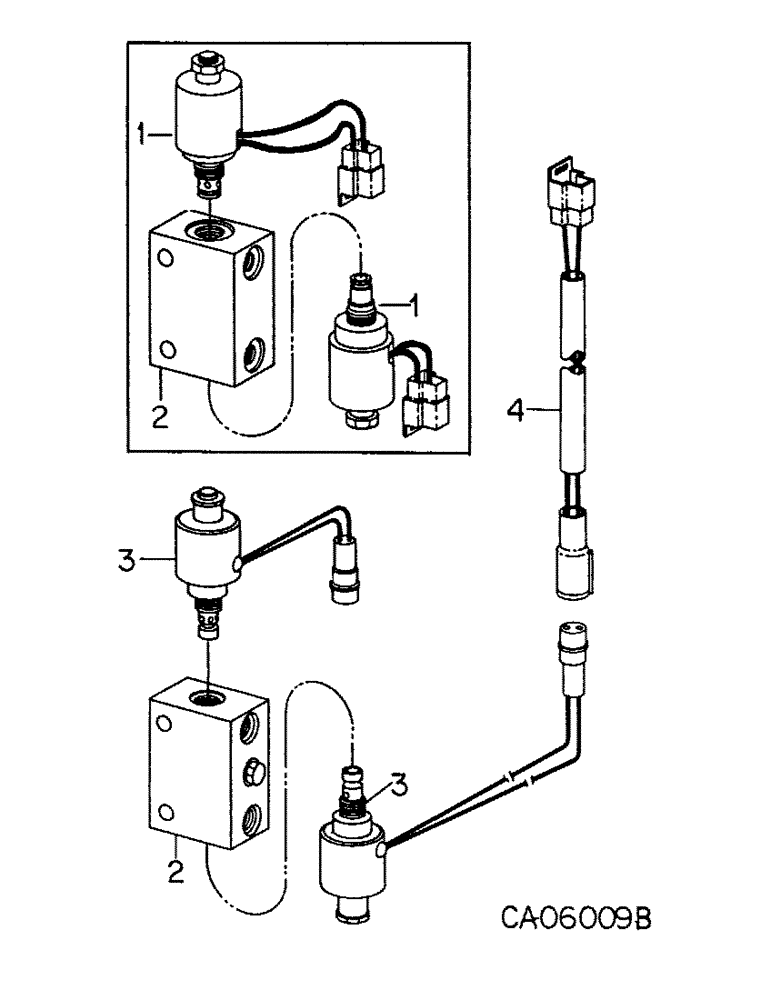

Запчасти Case IH 400 (A-103) - MARKER SOLENOID VALVE

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, consists of ref. nos. 2 and 3

1шт.

1

71927C91

VALVE

solenoid, order valve, 149989C91 and adaptor cable, 1252639C1

1шт.

2

145317C2

VALVE BODY

BODY, valve

1шт.

3

149989C91

VALVE

solenoid

2шт.

4

1252639C1

CABLE

ASSY, adaptor, used to convert old valve to new valve

1шт.

145316C1

REPAIR KIT

KIT, row marker valve seal

1шт.

545133R91

PACKAGE

product graphics, consists of product graphic, seed flow instructions (NSS)

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, caution, product graphic, sharp turn warning (NSS)

1шт.

113484C1

PRODUCT GRAPHIC, be careful, fan

2шт.

113483C1

PRODUCT GRAPHIC

be careful, lid, product graphic, cyclo nameplate (NSS), product graphic, instructional (NSS), product graphic, hitching instruction (NSS)

1шт.

136018C2

DECAL

PRODUCT GRAPHIC, caution, product graphic, transport instruction (NSS)

1шт.

76697C1

PACKAGE, product graphics, for electronic population control, consists of International 400 LH (NSS), International 400 RH (NSS), dial-a-rate (NSS)

1шт.

2753945R2

PRODUCT GRAPHIC, be careful, duplex hitch

1шт.

64553C2

PRODUCT GRAPHIC

caution, power drive

1шт.

113116C1

CAUTION DECAL,Caution Stay Clear Markers Actuate Automaticlly

PRODUCT GRAPHIC, caution, hazardous area

1шт.

100169C1

CAUTION DECAL

PRODUCT GRAPHIC, caution sticker to dealer instructions

1шт.

113274C2

DECAL

PRODUCT GRAPHIC, cyclo drum gauge

1шт.

113117C1

PRODUCT GRAPHIC, hitching instructions, on hitch cover

1шт.

60086C2

PRODUCT GRAPHIC

seeding chart, 7.75 x 14 tire, machines built 1974 and since

1шт.

134256C2

PRODUCT GRAPHIC, seeding chart, 9.5L x 14 high floatation tire, machines built 1974 and since

1шт.

175311C1

REFLECTOR

red

2шт.

174732C1

REFLECTOR

amber

2шт.

547596R1

GREASE

LUBRICANT, graphite, one quart can

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94, (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57, (2) IH trademark 2.19 x 2.36, (2) IH trademark 2.93 x 3.15

1шт.

547495R92

DECAL KIT

PACKAGE, International name, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 15.20 x 7.56 (NSS), (2) model designation 20.04 x 7.57 (NSS)

1шт.

547686R1

DECAL

PRODUCT GRAPHIC, cyclo

1шт.
