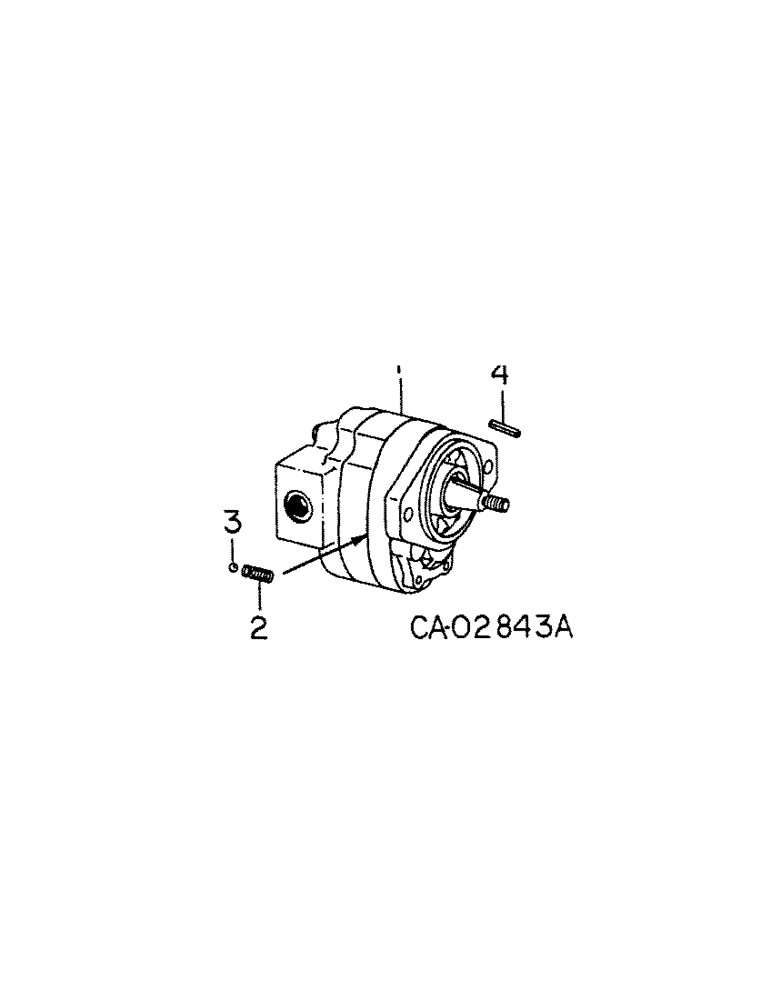

Запчасти Case IH 500 (C-27) - HYDRAULIC PUMP

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces 60584C91

1шт.

2

381230R1

SPRING

check ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

177192C1

KEY

drive shaft

1шт.

55295C91

SEAL KIT

KIT, seal repair, consists of

1шт.

381230R1

SPRING

check ball

1шт.

DIAPHRAGM SEAL, (NSS)

1шт.

BACK-UP GASKET, (NSS)

1шт.

PROTECTOR GASKET, (NSS)

1шт.

DIAPHRAGM, (NSS)

1шт.

SEAL, (NSS)

1шт.

THRUST PLATE, (NSS)

1шт.

17013R1

BALL,13/32" Dia

1шт.

INSTRUCTIONS, (NSS)

1шт.

156395C91

RESERVOIR

ASSY, hydraulic oil

1шт.
