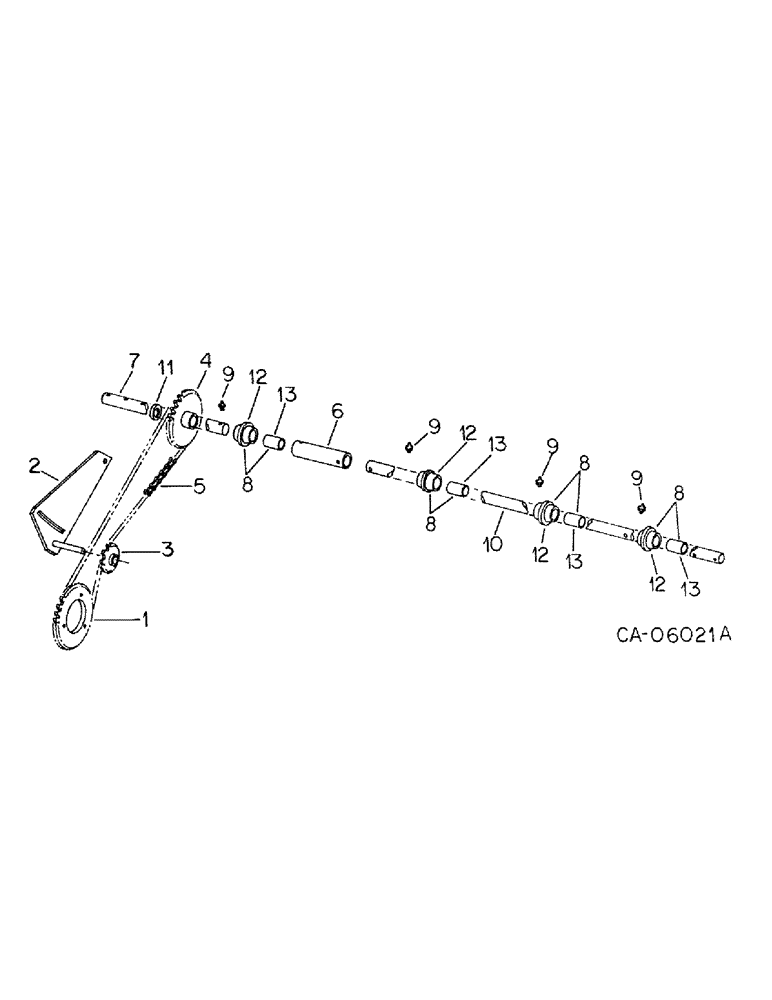

Запчасти Case IH 500 (E-11) - OUTER WHEEL DRIVE

1

100214C1

SPROCKET ASSY.

SPROCKET, wheel, 1 for 8 row narrow and 8 row wide, 2 for 12 row narrow

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 3 per wheel sprocket 5/16"

1шт.

2

520436R91

SUPPORT

TIGHTENER ASSY, chain LH

1шт.

2

520437R91

SUPPORT

TIGHTENER ASSY, chain RH, 12 row narrow only

1шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 type 1

1шт.

18712R1

BOLT,Short NK, 1/2"-13 x 4", G2

1/2 x 4 crg type 1, 1 per chain tightener

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per chain tightener 1/2"-13, G5

1шт.

3

472344R3

SPROCKET

6T idler, 1 for 8 row narrow and 8 row wide, 2 for 12 row narrow

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , 1 per idler sprocket 3/16" x 1"

1шт.

4

128894C1

SPROCKET ASSY.

SPROCKET ASSY, 15T, 1 for 8 row narrow and 8 row wide, 2 for 12 row narrow

1шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, , 1 per sprocket 1/4" x 2", Slotted

1шт.

5

CHAIN, drive, use 63 links from 10 ft roll marked 569088R91 and one connecting link 457113R91

1шт.

6

100246C1

COUPLER, wheel shaft, 8 row wide

1шт.

6

100381C1

COUPLER, wheel shaft, 2 for 12 row narrow

1шт.

6

125917C1

COUPLER, wheel shaft, 8 row narrow

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1.625 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4", 2 for 8 row narrow and 8 row wide, 4 for 12 row wide

1шт.

21801R1

WASHER

.281 x .734 x .056, 2 for 8 row narrow and 8 row wide, 4 for 12 row narrow

1шт.

7

100382C1

COUNTERSHAFT, 1 for 8 row narrow, 2 for 12 row narrow

1шт.

7

100249C1

COUNTERSHAFT, 8 row wide

1шт.

21761R1

WASHER

.906 x 1.500 x .054, 4 for 8 row narrow and 8 row wide, 6 for 12 row narrow

1шт.

8

481812R11

BEARING ASSY

w/BUSHING, 484060R1, assy, 2 for 8 row wide and 8 row narrow, 4 for 12 row narrow

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4", 3 for 8 row wide and 8 row narrow, 6 for 12 row narrow

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-open cot, 2 for 8 row wide and 8 row narrow, 4 for 12 row narrow

1шт.

9

19700R91

FITTING

3/16 x 45 deg drive lub, 2 for 8 row wide and 8 row narrow, 4 for 12 row narrow

1шт.

10

141396C1

COUNTERSHAFT, center, replaces 113216C1, 8 row wide, 8 row narrow and 12 row narrow

1шт.

11

128942C1

SPACER, flec shaft coupler, 1 for 8 row wide and 8 row narrow, 2 for 12 row narrow

1шт.

12

BEARING, (not serviced separately) order bearing assy, 481812R11

1шт.

13

484060R1

BUSHING

2 for 8 row wide & 8 row narrow, 4 for 12 row narrow

1шт.
