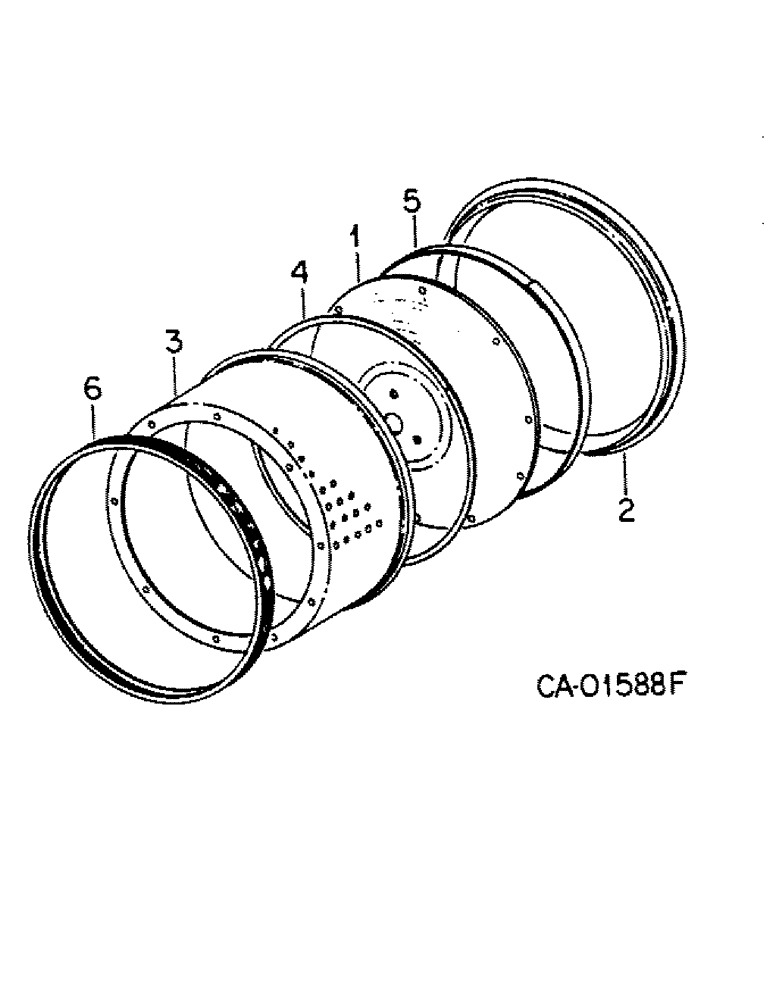

Запчасти Case IH 500 (E-20) - SEED DRUM, QUANTITIES SHOWN ARE PER SEED HOPPER

1

145113C1

CAP

end, replaces 546404R1

1шт.

27115R1

BOLT,Oval, 10" - 24 x 5/8"

SCREW, no. 10 x 5/8 PHC o/hdcr mach

8шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

8шт.

2

546403R3

SEAL

drum, package of five

1шт.

3

549967R92

DRUM

PACKAGE, bean seed drum, 72 holes per row, pocket type D, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

3

58433C92

DRUM

PACKAGE, beet seed drum, 36 holes per row, pocket type G, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

63813C92

ATTACHMENT

PACKAGE, beet seed drum, 72 holes per row, pocket type G, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

549963R92

DRUM

PACKAGE, pelleted beet seed drum, 36 holes per row, pocket type C, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

3

546632R92

DRUM

PACKAGE, corn seed drum, 24 holes per row, pocket type A, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

60269C92

DRUM

PACKAGE, corn seed drum, 36 holes per row, pocket type A, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

546969R92

PACKAGE, cotton seed drum, 96 holes per row, pocket type E, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

3

60648C92

DRUM

PACKAGE, cotton & soybean seed drum, 144 holes per row, pocket type F, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

549965R92

DRUM

PACKAGE, popcorn & sunflower seed drum, 24 holes per row, pocket type B, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

3

61143C92

DRUM

PACKAGE, popcorn & sunflower seed drum, 36 holes per row, pocket type B, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

3

546633R92

DRUM

PACKAGE, sorghum seed drum, 72 holes per row, pocket type C, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

58435C92

DRUM

PACKAGE, sorghum seed drum, 144 holes per row, pocket type C, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

546634R93

DRUM

PACKAGE, soybean seed drum, 144 holes per row, pocket type H, see note, includes ref nos 1, 4, 5, attaching hardware and drum seal

1шт.

3

1264085C91

PACKAGE, sunflower seed drum, 24 holes per row, pocket type J, see note, includes ref nos 1, 4, attaching hardware and drum seal

1шт.

4

SEAL, drum, .06 x .31 x 63.5 in. long, make from 200 ft. roll marked, 57554C1

1шт.

5

60303C4

RING, SNAP

RING, seal retaining

1шт.

61624C1

SEALANT

ADHESIVE, 5 ounce tube, use to adhere retainer ring to drum seal

1шт.

6

56539C2

BELT

seed drum, for 24 hole drum, for use when planting seed corn w/butterfly tips

1шт.

63280C1

PACKAGE

seed drum belt service, for 2 rows, used to aid in the planting of long slender corn seeds or seeds with, butterfly tips, for 36 hole drum, consists of (1) belt (NSS), (1) fastener (NSS), (1) instructions (NSS)

1шт.
