(E-36) - HYDRAULIC GEAR PUMP, FOR 12 ROW NARROW

Запчасти Case IH 500 (E-36) - HYDRAULIC GEAR PUMP, FOR 12 ROW NARROW

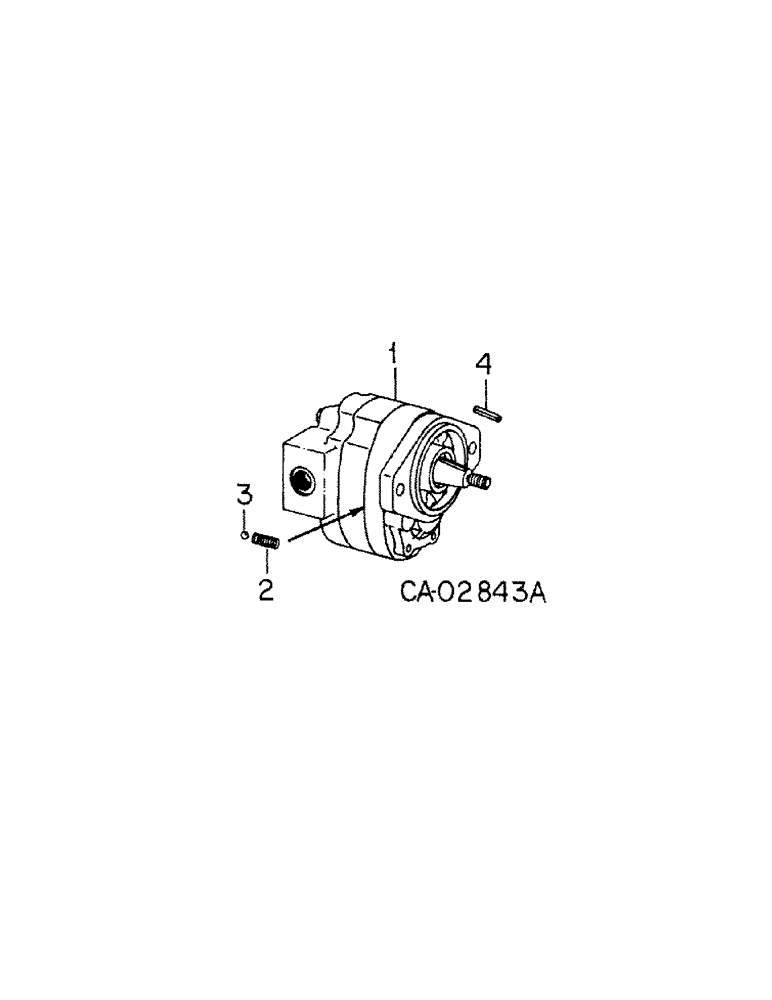

Схема запчастей Case IH 500 - (E-36) - HYDRAULIC GEAR PUMP, FOR 12 ROW NARROW
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, replaces 60584C91

1шт.

2

381230R1

SPRING

check ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

177192C1

KEY

drive shaft

1шт.

55295C91

SEAL KIT

KIT, seal repair, consists of diaphragm seal (NSS)

1шт.

381230R1

SPRING

check ball

1шт.

17013R1

BALL,13/32" Dia

Back-up gasket (NSS), protector gasket (NSS), diaphragm (NSS), seal (NSS), thrust plate (NSS), instructions (NSS) 13/32" Dia

1шт.

156395C91

RESERVOIR

ASSY, hydraulic oil

1шт.
