(E-39) - MARKER SOLENOID VALVE

Запчасти Case IH 500 (E-39) - MARKER SOLENOID VALVE

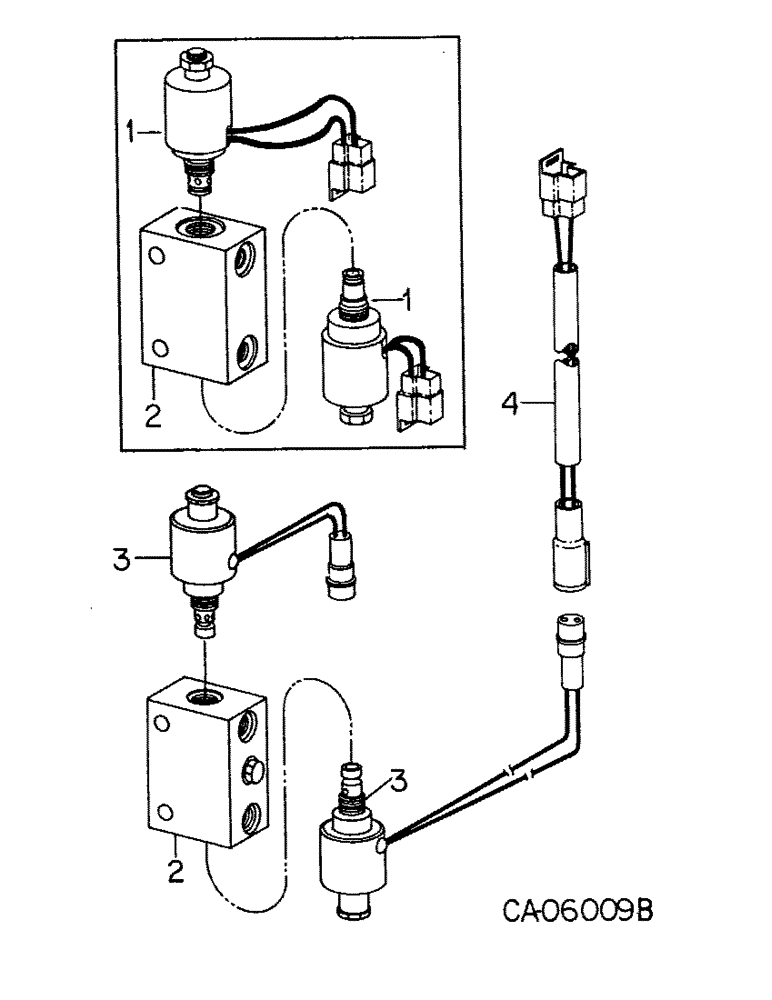

Схема запчастей Case IH 500 - (E-39) - MARKER SOLENOID VALVE
1
2
2
3
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, consists of ref nos 2 and 3

1шт.

1

71927C91

VALVE

solenoid, order valve 149989C91 and adapter cable, 1252639C1

1шт.

2

145317C2

VALVE BODY

BODY, valve

1шт.

3

149989C91

VALVE

solenoid

1шт.

4

1252639C1

CABLE

ASSY, adapter, used to convert old valve to new valve

1шт.

145316C1

REPAIR KIT

KIT, row marker valve seal

1шт.
