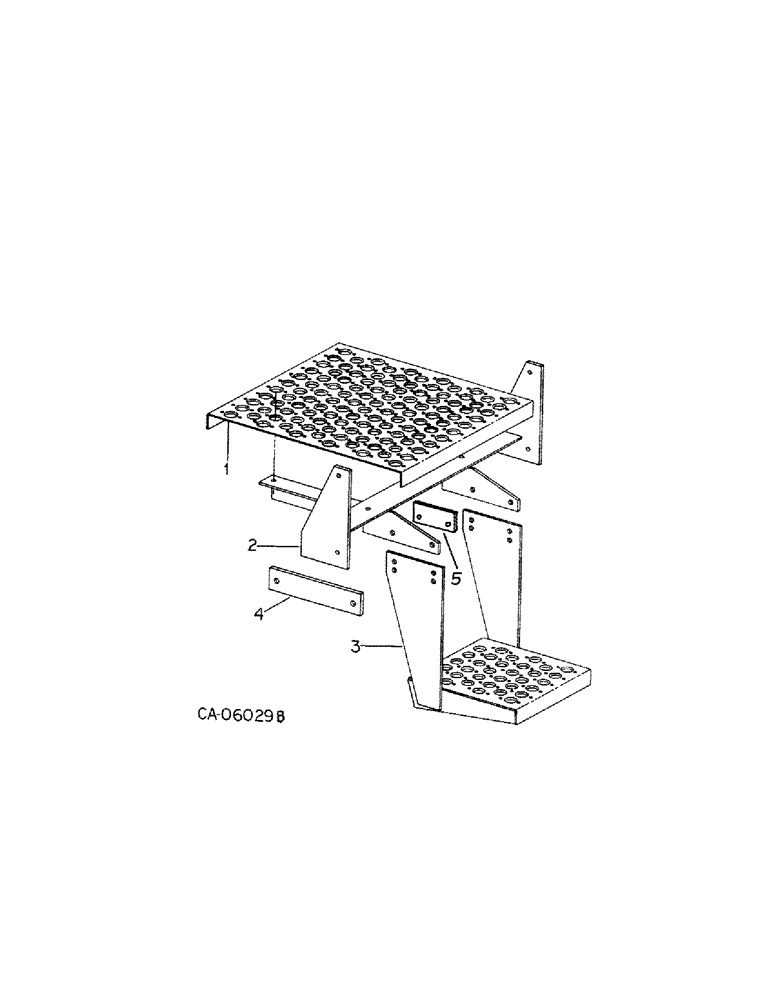

Запчасти Case IH 500 (E-48[A]) - REAR STEP ATTACHMENT, FOR HOPPER ASSIST, FOR 12 ROW NARROW

1

100368C2

LARGE PLATE

PLATFORM

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

4шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.531 x 1.500 x .105 sq/h

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

100371C1

BRACKET ASSY, platform

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

58193C2

STEP ASSY, lower

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

144848C1

SUPPORT, platform, for inside units only, for machines w/hoppers mounted rearward on module

1шт.

5

1254165C1

PLATE, step support

1шт.
